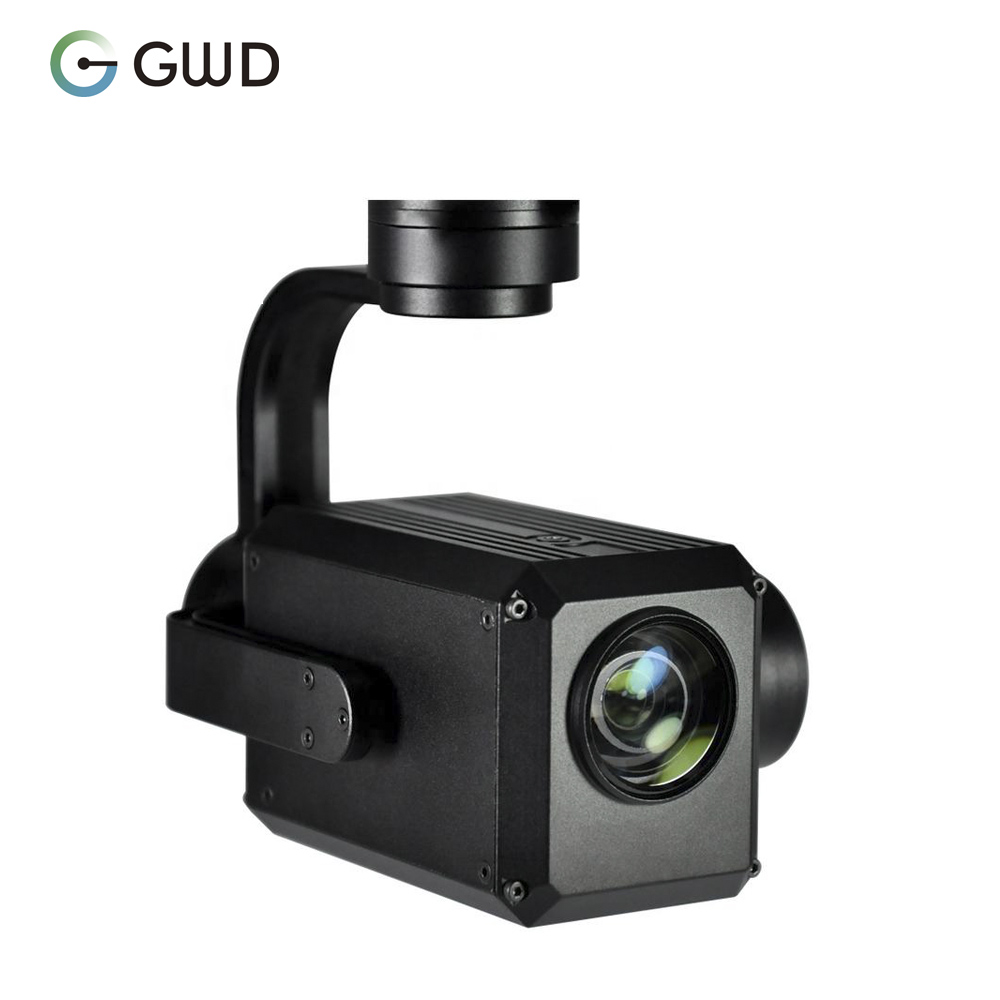

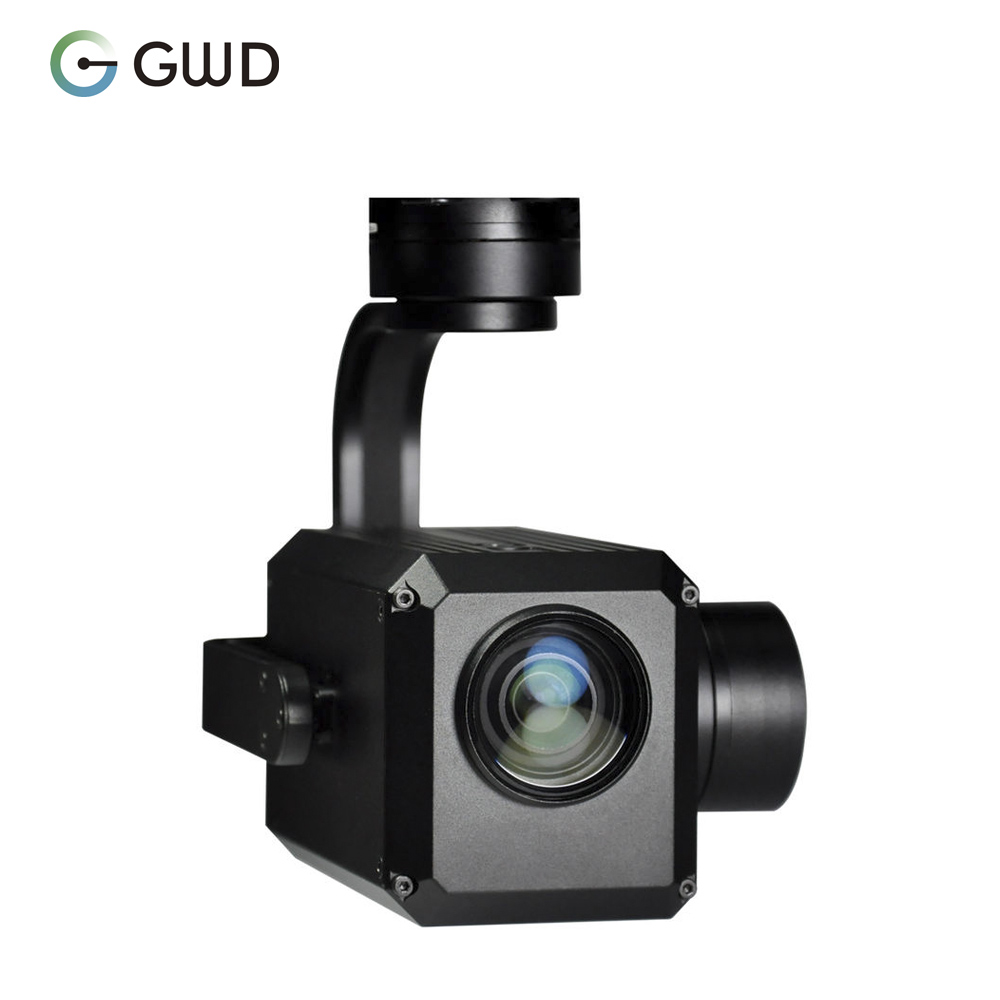

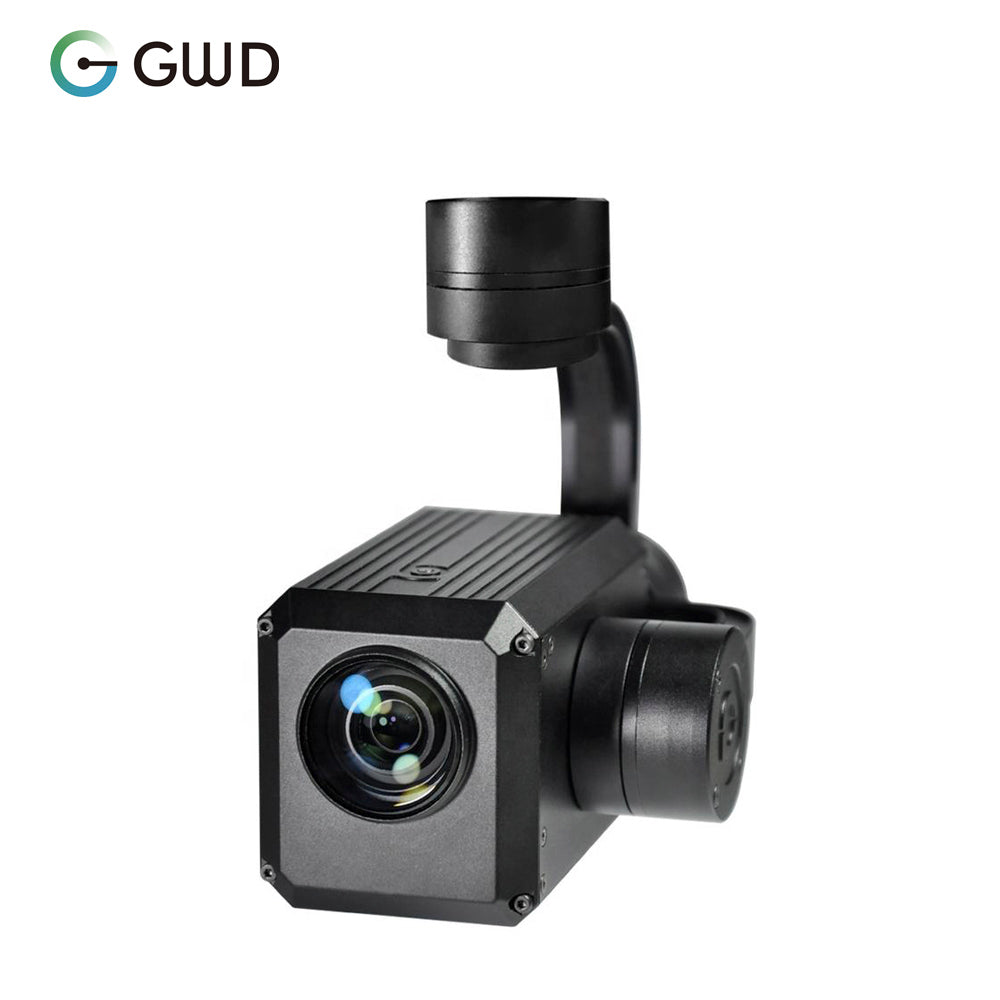

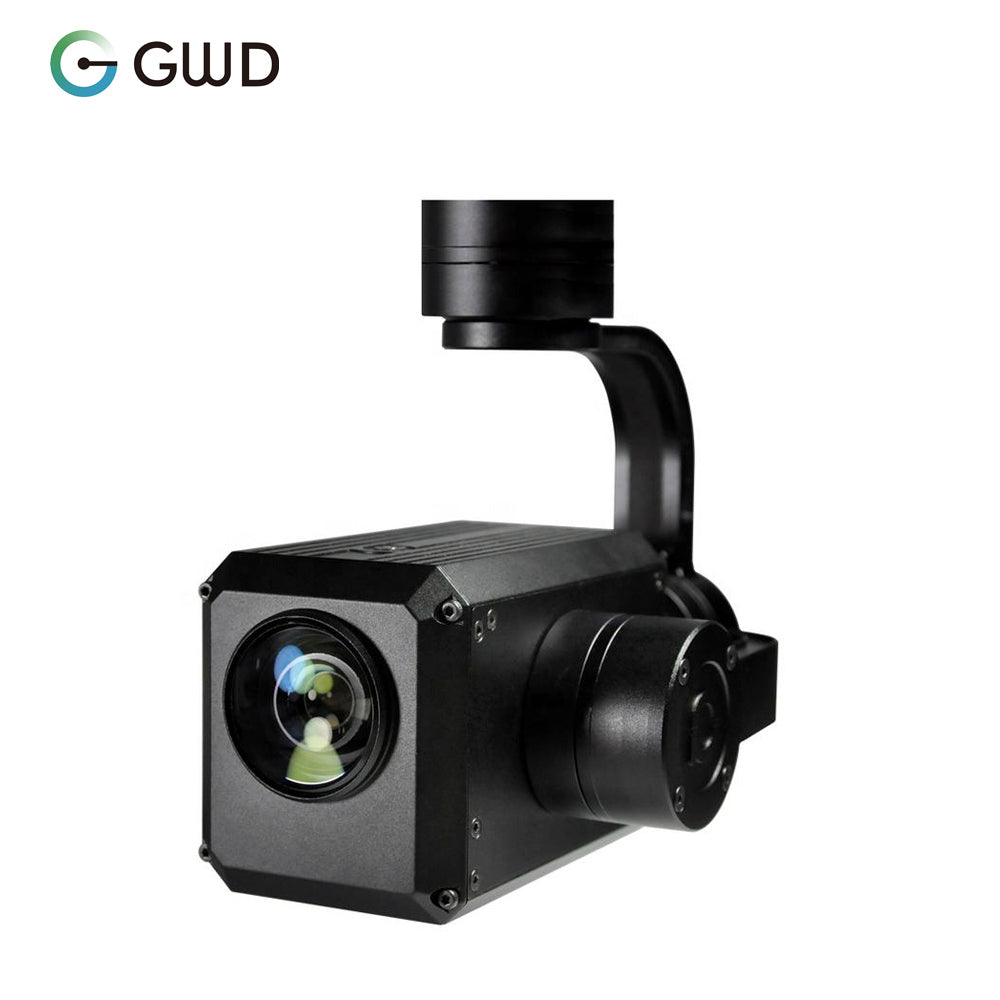

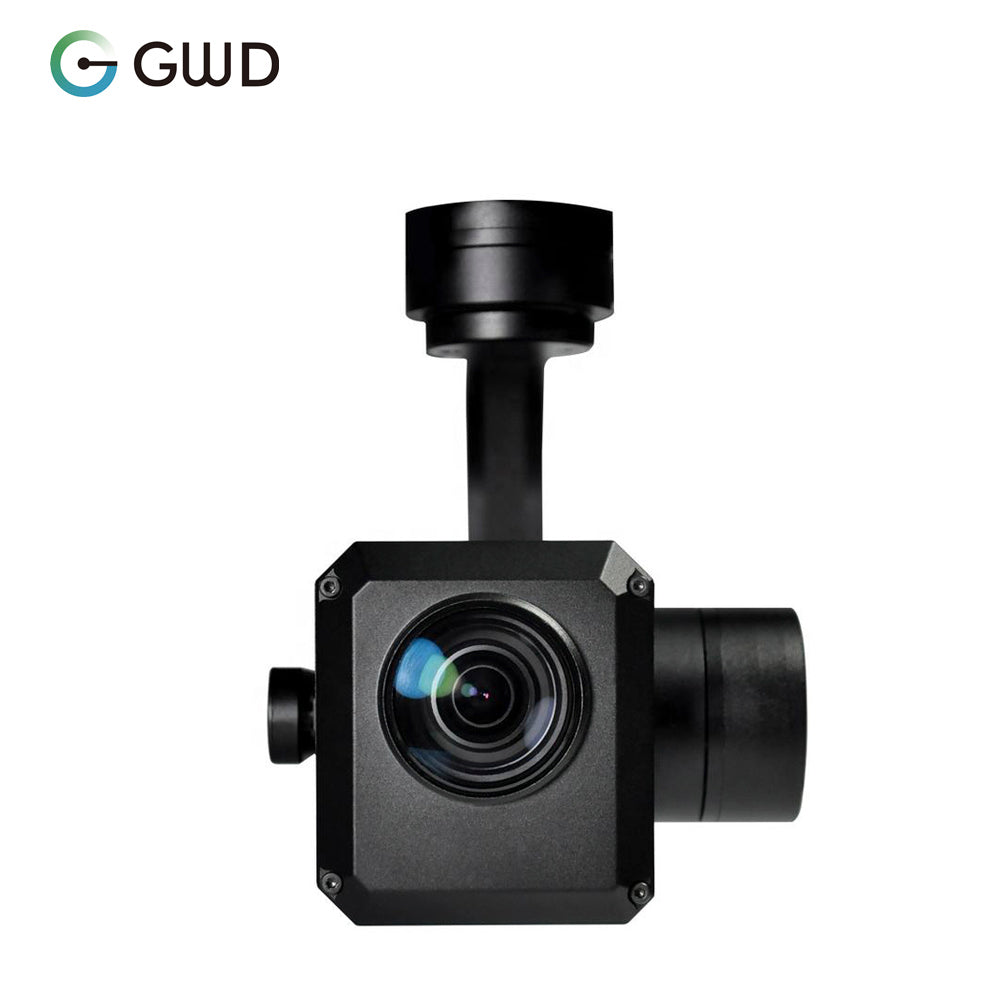

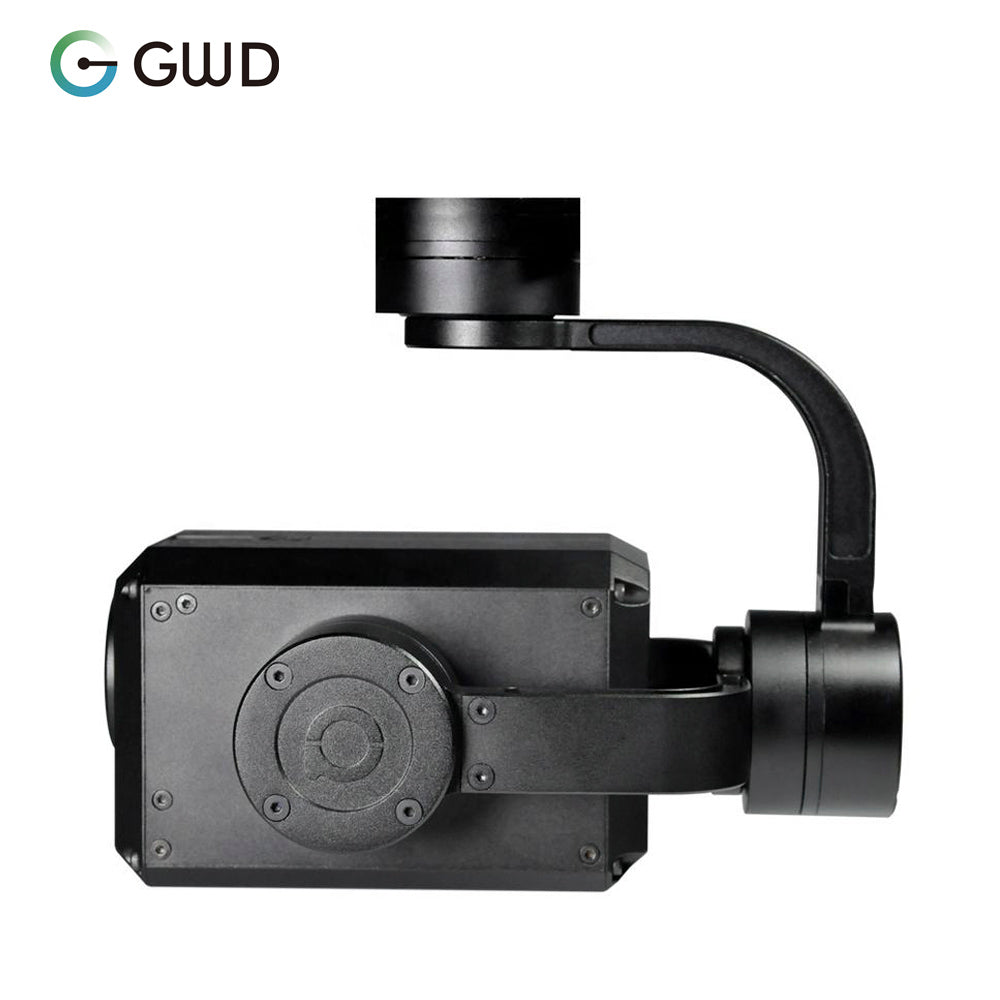

Professional 40x Zoom 25.9 MP 4K Gimbal Video Camera for UAV 3 Axis Drone
Professional 40x Zoom 25.9 MP 4K Gimbal Video Camera for UAV 3 Axis Drone
Regular price
$4,800.00
Regular price
Sale price
$4,800.00
Unit price
per
Couldn't load pickup availability
Quick Details
Lead time:
With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry.
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-Z40K |
| Warranty: | 1 Year |
| Special Features: |
Two-way Audio |
| Sensor: | CMOS |
| Style: | Mini camera |
| Function: | RESET, Wide Angle |
| Video Compression Format: | H.264 |
| Data Storage Options: | Micro SD card, SD Card |
| Application: | Outdoor, Indoor |
| Customized support: | Online technical support, Customized logo, Software reengineering, OEM, ODM |
| Product name: | Professional drone tracking camera |
| Working voltage: | 12v |
| Input voltage: |
3S ~ 4S |
| Working environment temp: |
-20℃ ~ +60℃ |
| Output: |
micro HDMI(HD output 1080P 50/60fps) / IP(720P/1080P 25/30fps) |
| Local-storage: |
SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
| Control method: | PWM / TTL / S.BUS |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. time (days) | 15 | 35 | To be negotiated |
Products Description
Professional 40x Zoom 25.9 MP 4K Gimbal Video Camera for UAV 3 Axis Drone
Product Features
GWD-Z40K is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power
consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. With advanced OIS function, Z40K can compensate the subtle movements of the UAV to keep the camera stable even under 25 times optical zoom. Powered by Panasonic 1/2.3inch CMOS 25.9MP 4K camera, Z40K is engineered for inspection especially power and utility industry.
The speed of Z40K gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wideend,which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initialposition automatically and rapidly.
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
750mA @ 12V
|
|
Idle current
|
600mA @ 12V
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI(HD output 1080P 50/60fps) / IP(720P/1080P 25/30fps)
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / SBUS
|
|
Gimbal Spec
|
|
|
Angle scope of structure design
|
Pitch/Tilt: -120°～120°, Roll: ±70°, Yaw/Pan: ±300° / ±360°*N (IP output version)
|
|
Angle scope of software design
|
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290° / ±360°*N (IP output version)
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw：±0.02°
|
|
Camera Spec
|
|
|
Imager Sensor
|
Panasonic 1/2.3inch CMOS
|
|
Lens
|
F1.8~F3.6(f=4.08~81.6mm)
|
|
Zoom
|
Optical zoom:20x, iA zoom:25x(4k) / 40x(FHD)
|
|
Total pixel
|
25.9MP
|
|
Record effective pixel
|
4k:8.29MP / FHD:6.10MP(16:9)
|
|
Picture effective pixel
|
25.9MP(16:9) 6784*3816
|
|
Optical Image Stabilization
|
5 axis Optical Image Stabilization
|
|
Video storage format
|
MPEG-4 (4k:3840*2160 25/30fps FHD:1080P 50/60fps)
|
|
Record shutter speed(Manual)
|
1/30 ~ 1/8000
|
|
Photo storage format
|
JPG(4K:20.4M FHD:14M)
|
|
Picture shutter speed(Manual)
|
1/2 ~ 1/2000
|
|
Dynamic range
|
65dB
|
|
Min object distance
|
1.5M
|
|
Viewing angle
|
Horizontal: 53.2°(Wide end) ~ 5.65°(Tele end)
|
|
Vertical: 39.8°(wide end) ~ 4.2°(tele end)
|
|
|
Focus: 66.6°(wide end) ~ 7.2°(tele end)
|
|
|
Sync system
|
Progressive scanning
|
|
Local video
|
1080P 30fps local TF card
|
|
HD output
|
1080P 50/60fps HDMI1.4
|
|
S/N ratio
|
38dB
|
|
Min illumination
|
Color 0.05lux@F1.6
|
|
Backlight compensation
|
Backlight compensation/strong light inhibition
|
|
Gain
|
Auto
|
|
White balance
|
Auto/Manual
|
|
Control system
|
UART/IR/PWM
|
|
Communication protocol
|
PELCO-D, Hitachi protocol or VISCA
|
|
Focus
|
Auto/Manual/One-time automatic focus
|
|
Focus speed
|
2s
|
|
Lens initialization
|
Built-in
|
|
User presetting bit
|
20 sets
|
|
Image rotation
|
180°, Horizontal/Vertical mirror image
|
|
Facial recognition
|
√
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<10ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
160*160 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
Control method
|
PWM / TTL / S.BUS
|
|
Packing Information
|
|
|
N.W.
|
570g
|
|
Product meas.
|
95.3*153.2*141.4mm
|
|
Accessories
|
1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
|
|
G.W.
|
2812g
|
|
Package meas.
|
360*300*250mm
|
