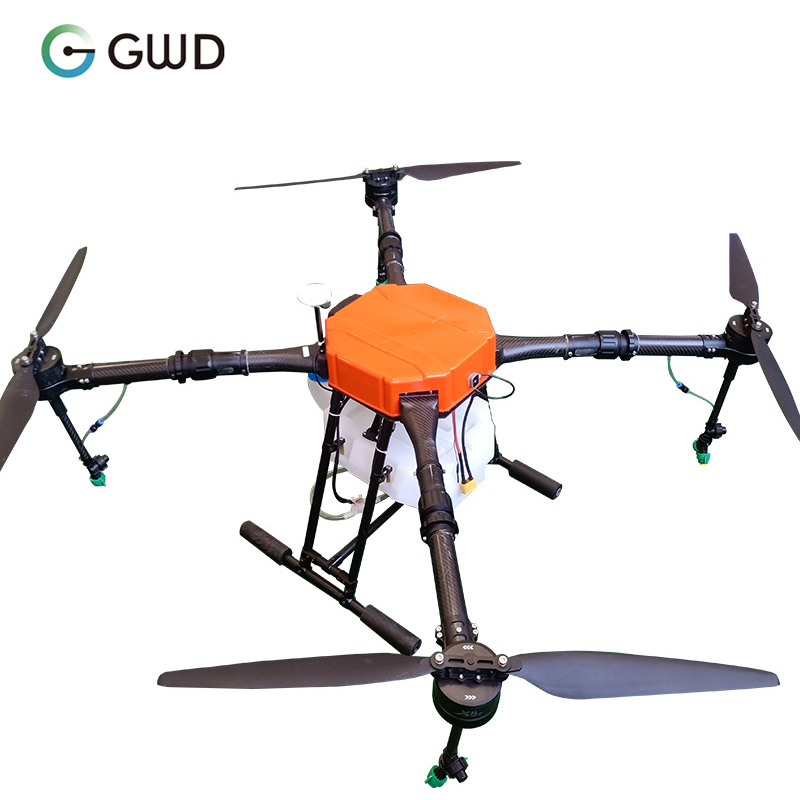

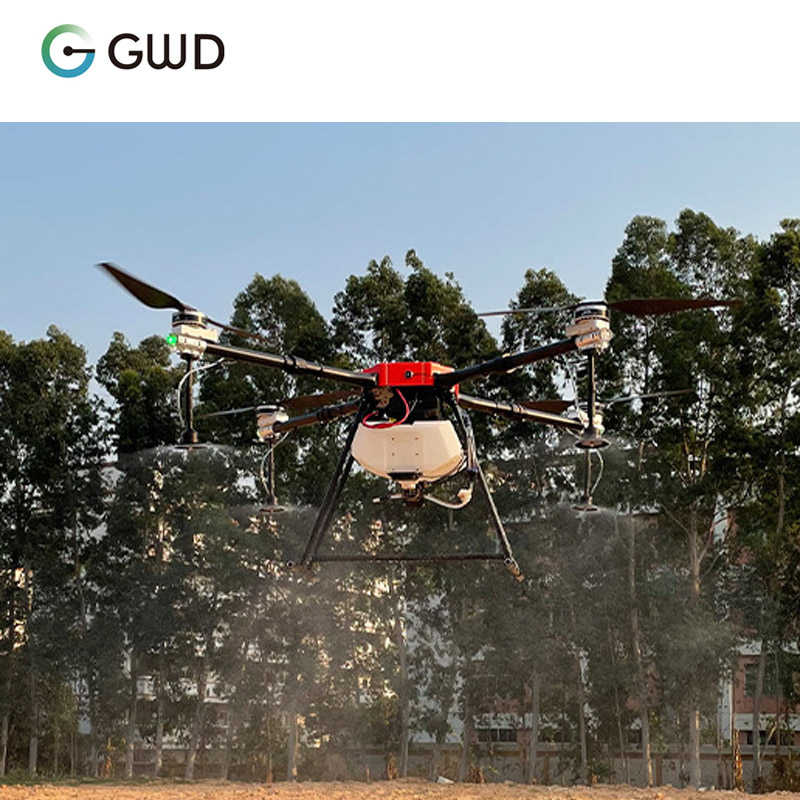

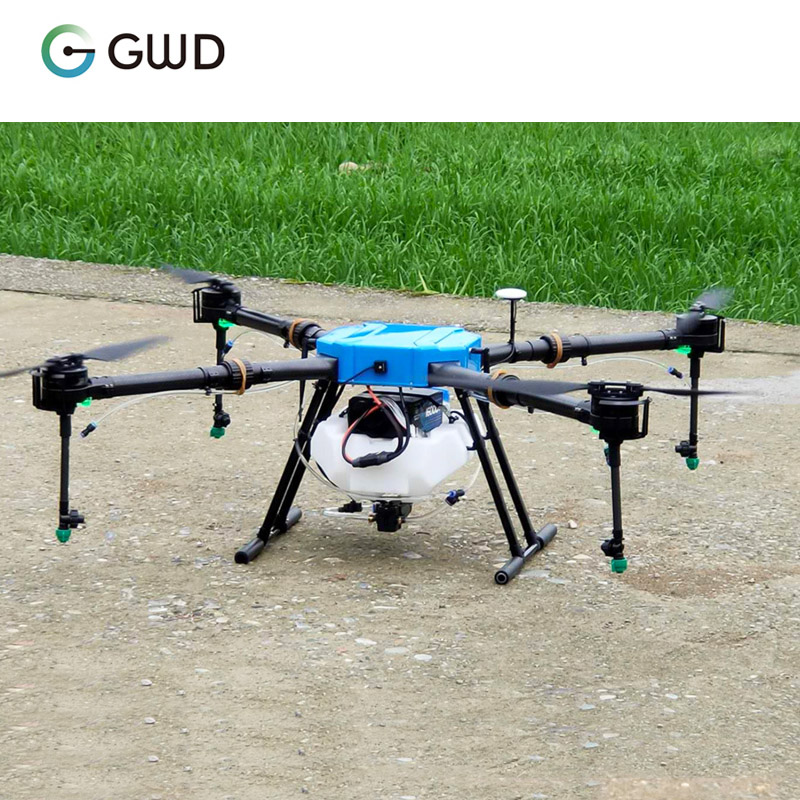

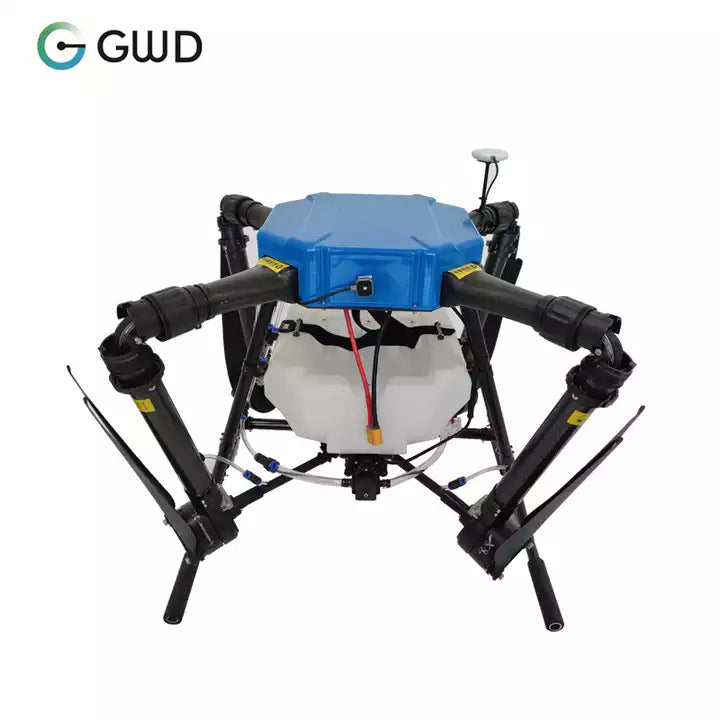

GWD-410S Agricultural Drone Sprayer 10 Litres Fumigation Agriculture Quadcopter Spraying Drone Control System Cheap Price
GWD-410S Agricultural Drone Sprayer 10 Litres Fumigation Agriculture Quadcopter Spraying Drone Control System Cheap Price
Regular price
$3,988.00
Regular price
$4,599.00
Sale price
$3,988.00
Unit price
per
Couldn't load pickup availability
Lead Time:
| Quantity(pieces) | 1 - 20 | 21 - 200 | >200 |
| Est. Time(days) | 15 | 45 | To be negotiated |
Products Description
Popular Agricultural Drone Sprayer 10 Litres Fumigation Agriculture Quadcopter Spraying Drone Control System Cheap Price
|
Model Number
|
GWD-410S
|
|
Name
|
Agricultural Drone
|
|
Diagonal Wheelbase
|
1500mm
|
|
Folded Size
|
750*750*570mm
|
|
Spreaded Size
|
1500*1500*570mm
|
|
Operation Power
|
44.4V（12S)
|
|
Weight
|
10KG Battery:5KG
|
|
Loading
|
10KG
|
|
Flight Speed
|
3 - 8 M/S
|
|
Spray Width
|
3 - 5 M/S
|
|
Max. Takeoff Weight
|
26KG
|
|
Flight Control systems /
|
V7-AG
|
|
Dynamic System
|
X8
|
|
Spraying System
|
Pressure Spray
|
|
Water Pump Pressure
|
0.8mPa
|
|
Spraying Flow
|
1.5-4 KG/Min （Max. 4KG/Min )
|
|
Flight Time
|
Empty Tank：20-25Min , Full Tank：7-10Min
|
|
Operational
|
1.5-3 Acres /Min
|
|
Power Battery
|
12S 16000m
|
|
Charging Time
|
0.5-1 Hour
|
|
Recharge Cycles
|
300-500 times
|
|
Daily efficiency(6hours)
|
300-600acres
|
|
Packing Box
|
Flight Case 70*70* 60CM
|
Functional Features:
a. Android ground station, easy to use / PC ground station, full voice broadcast.
b. Router Setting support, Fully Auto Flight operation with A,B Point operation.
c. One Button take-off and landing, More safety and time saving.
d. Continue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
e. Liquid Detection, Break Point record setting.
f. Battery Detection, Low battery return and Record point setting available.
g. Height Control Radar, Stable Altitude setting, Supporting Imitative Earth function.
h. Flying Layout setting available.
i. Vibration Protection, Lost Connect protective, Drug Cut protection.
j. Motor Sequence Detection and Direction detection Function.
k. Dual Pump Mode.
l. Cam Recorder, Real-time transmission available.
m. Ascent or Descent according to Terrain Imitative Earth.
n. Obstacle avoidance Function, Surrounding Obstacles detection.
o. Seed Sowing function, Additional seed Spreader, or etc.
p. RTK Precise Positioning.
