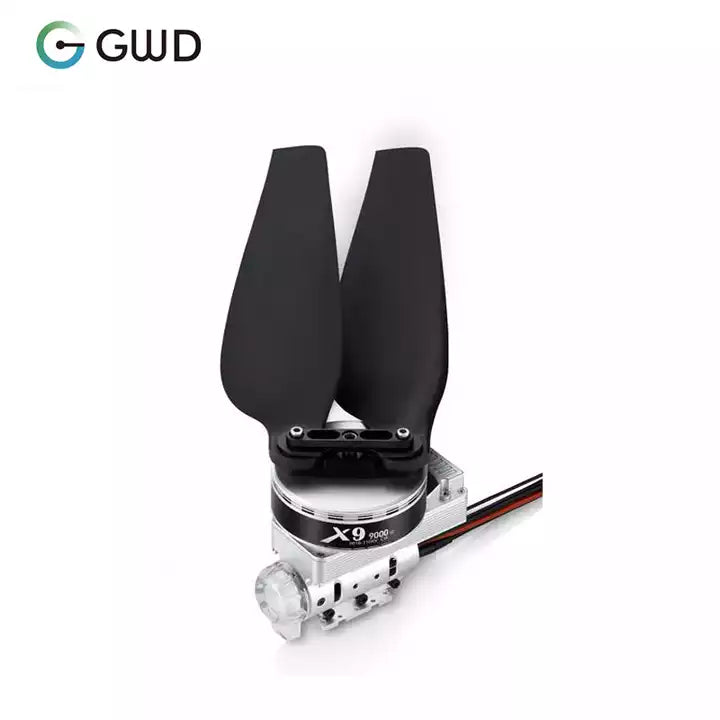

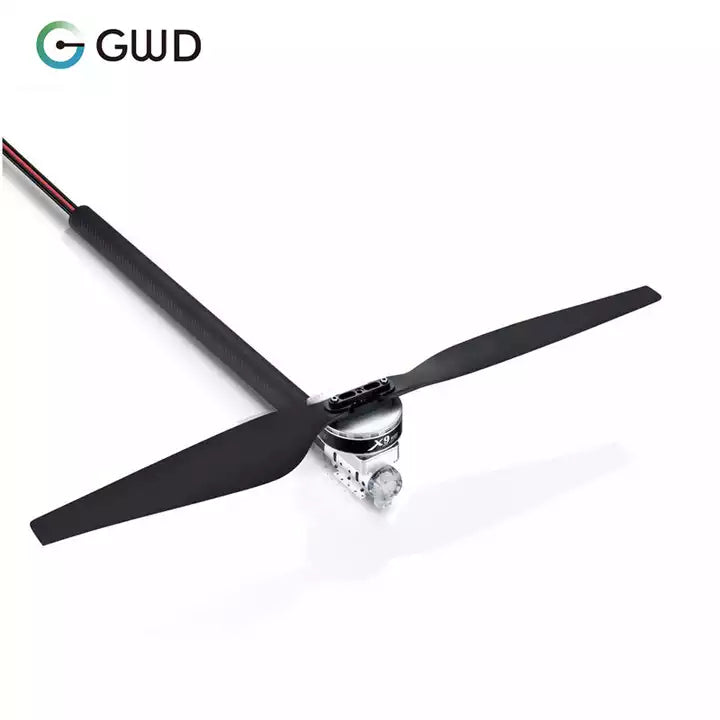

HobbyWing X9 Drones Power System UAV Propeller Wholesale Drone Parts Assembly Accessories For Agricultural Drone
HobbyWing X9 Drones Power System UAV Propeller Wholesale Drone Parts Assembly Accessories For Agricultural Drone
Regular price
$296.00
Regular price
Sale price
$296.00
Unit price
per
Couldn't load pickup availability
Quick Details
|
Place of Origin: |
Guangdong, China |
| Brand Name: |
GWD |
| Model Number: |
HobbyWing X9 |
|
Private Mold: |
NO |
|
Type: |
Drones Accessories |
|
Product name: |
HobbyWing X9 Max Drone Power System |
|
Function: |
Portable |
|
OEM/ODM: |
Warmly Welcomed |
| Logo: | Customer Logo Accepted |
| Quantity(pieces) | 1 - 200 | 201 - 5000 | >5000 |
| Est. Time(days) | 15 | 40 | To be negotiated |
Products Description

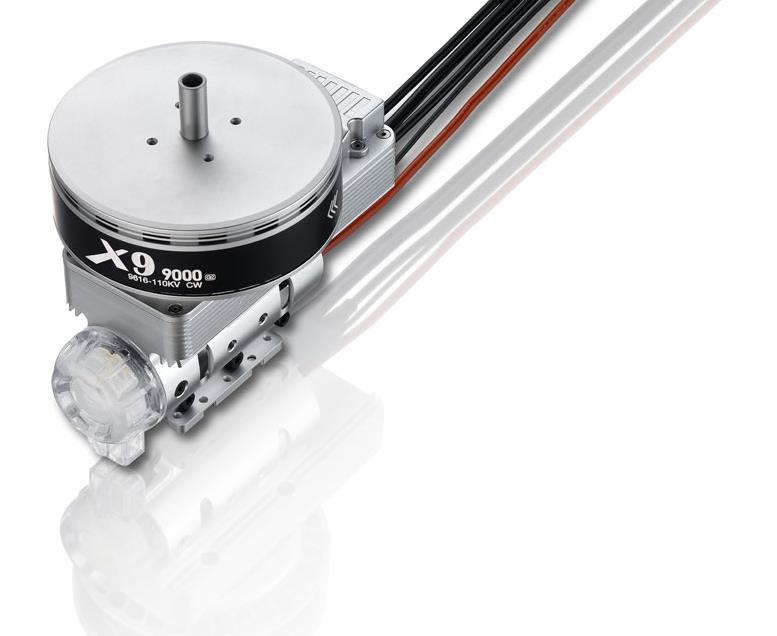

HobbyWing X9 Drones Power System UAV Propeller Wholesale Drone Parts Assembly Accessories For Agricultural Drone
For more style drone accessories, please contact us
|
Category
|
Product Item
|
X6
|
X8
|
X9
|
X9 Plus
|
X9 Max
|
|
Specifications
|
Max. Thrust per Axis (kg)
|
12
|
15.3
|
22.5
|
26.5
|
29
|
|
Recommended LiPo Battery
|
12S
|
12S
|
12~14S
|
14S
|
14S
|
|
|
Recommended Takeoff Weight per Axis (kg)
|
3-5
|
5-7
|
7-9.5
|
11~13
|
12-15
|
|
|
Combo Weight (g)
|
720
|
1040
|
1400
|
1774
|
1970
|
|
|
Waterproof Rating
|
IPX7
|
IPX7
|
IPX7
|
IPX7
|
IPX7
|
|
|

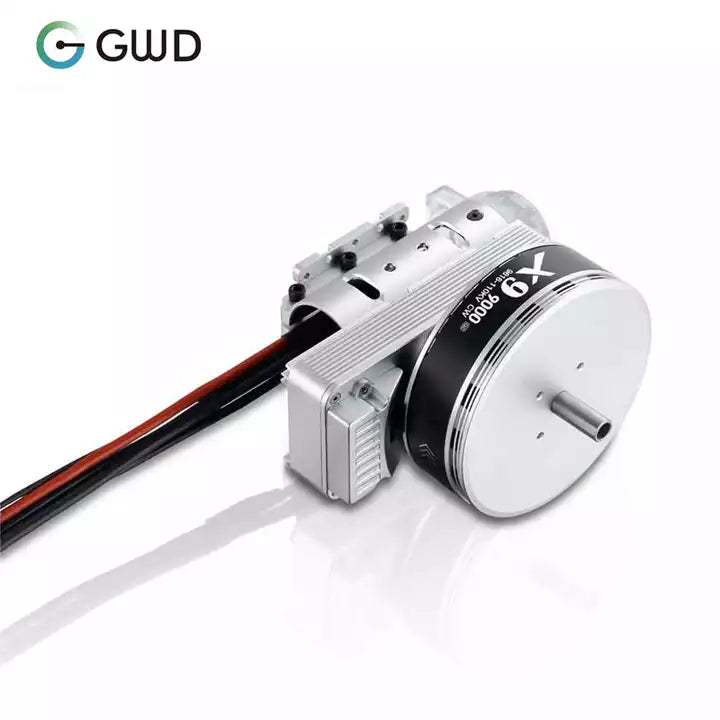

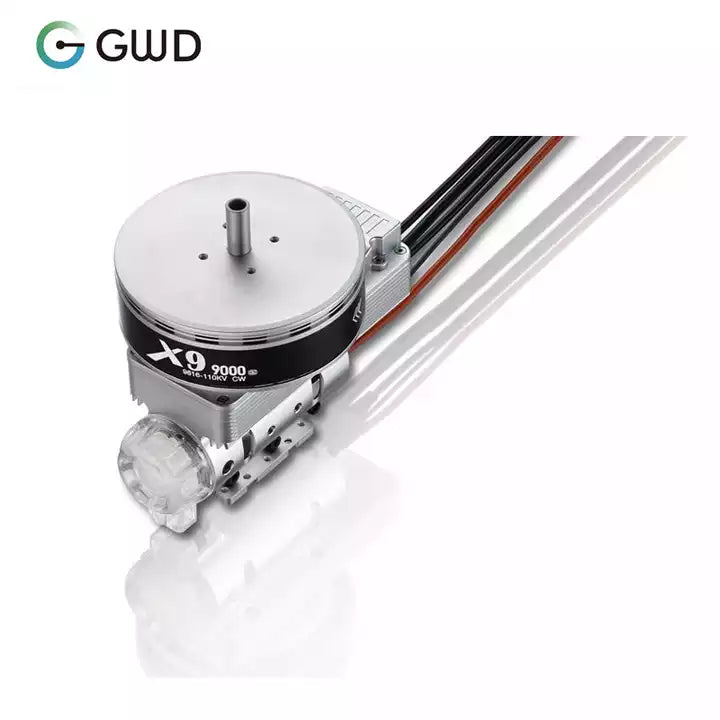

Motor
|
Stator Size (mm)
|
70
|
81*20
|
96*16
|
96*20
|
96*26
|
|
KV Rating (KV)
|
180
|
100
|
110
|
100
|
100
|
|
|

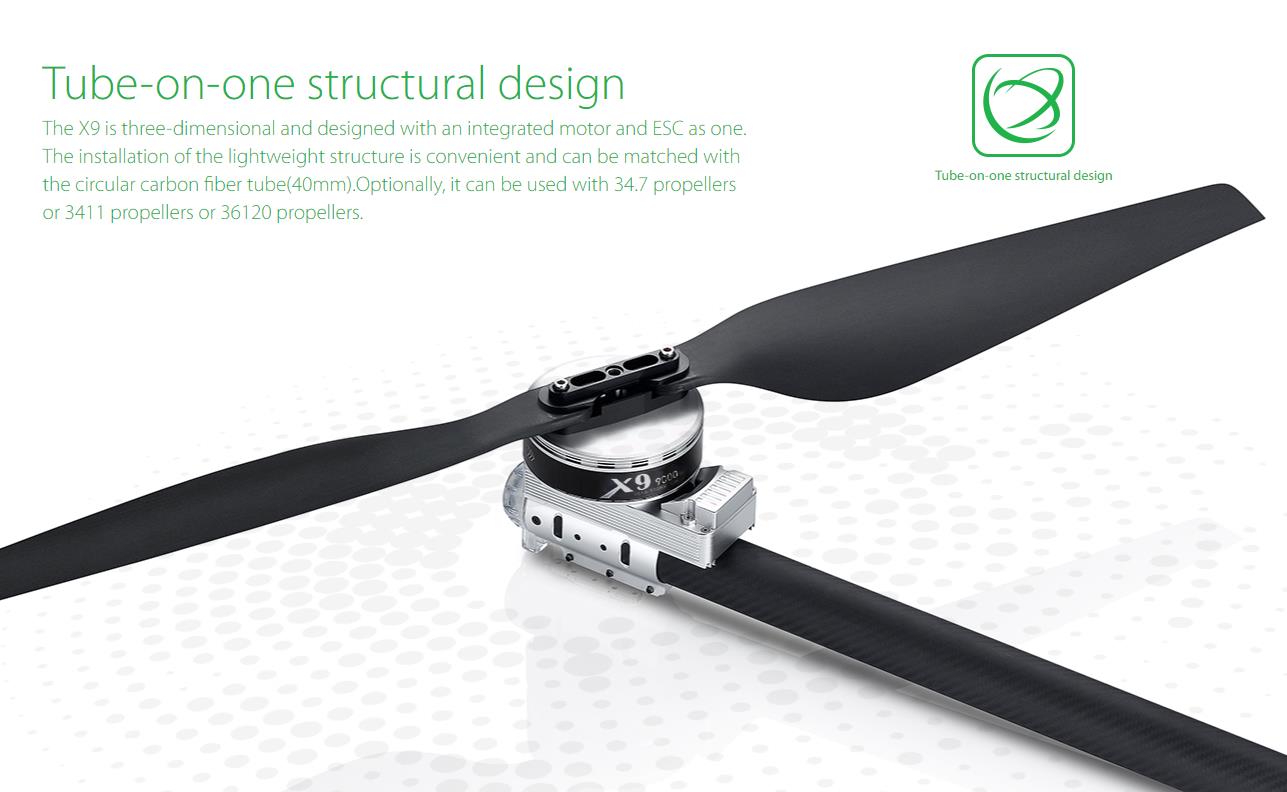

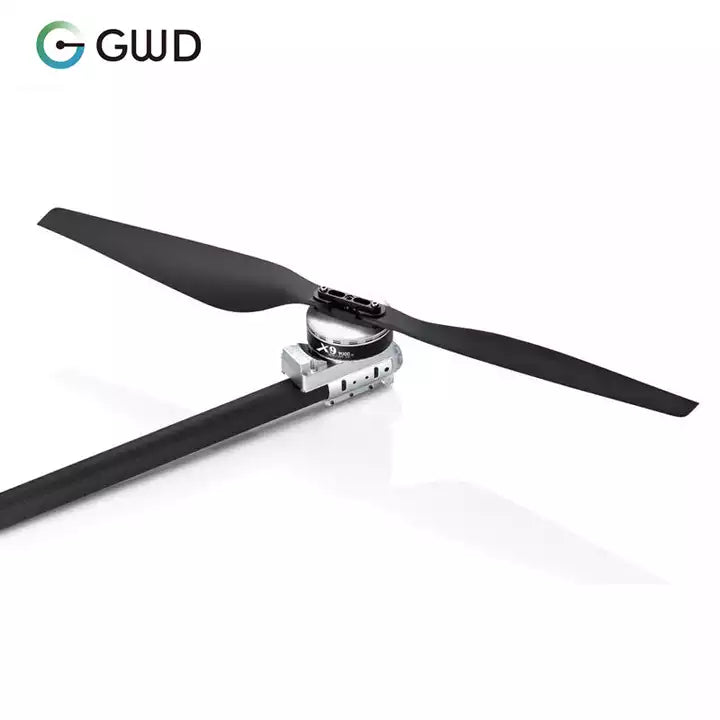

O.D of Carbon Fiber Tube with and W/O Tube Adapter
|
φ30/φ28
|
Φ35/Φ30
|
Φ40
|
φ40/φ45
|
φ40/φ45
|
|
|
Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
Imported Bearing
|
|
|
ESC
|
Recommended LiPo Battery
|
6-12S
|
6-12S
|
12-14S
|
6-14S
|
6-14S
|
|
PWM Input Signal Level
|
3.3v/5v (Compatible )
|
|||||
|
Throttle Signal Frequency
|
50-500Hz
|
|||||
|
Operating Pulse Width (Fixed or cannot be Programmed )
|
1100~1940 μs
|
1100~1940 μs
|
1100~1940 μs
|
1050-1950 μs
|
1050-1950 μs
|
|
|
Max. Input Voltage
|
52.2
|
52.2 V
|
52.2 V
|
60.9 V
|
60.9 V
|
|
|
Max. Input Current (A), Short Duration, Good Heat Dissipation
|
80
|
80 A
|
120 A
|
120 A
|
150 A
|
|
|
BEC
|
No
|
No
|
No
|
No
|
No
|
|
|

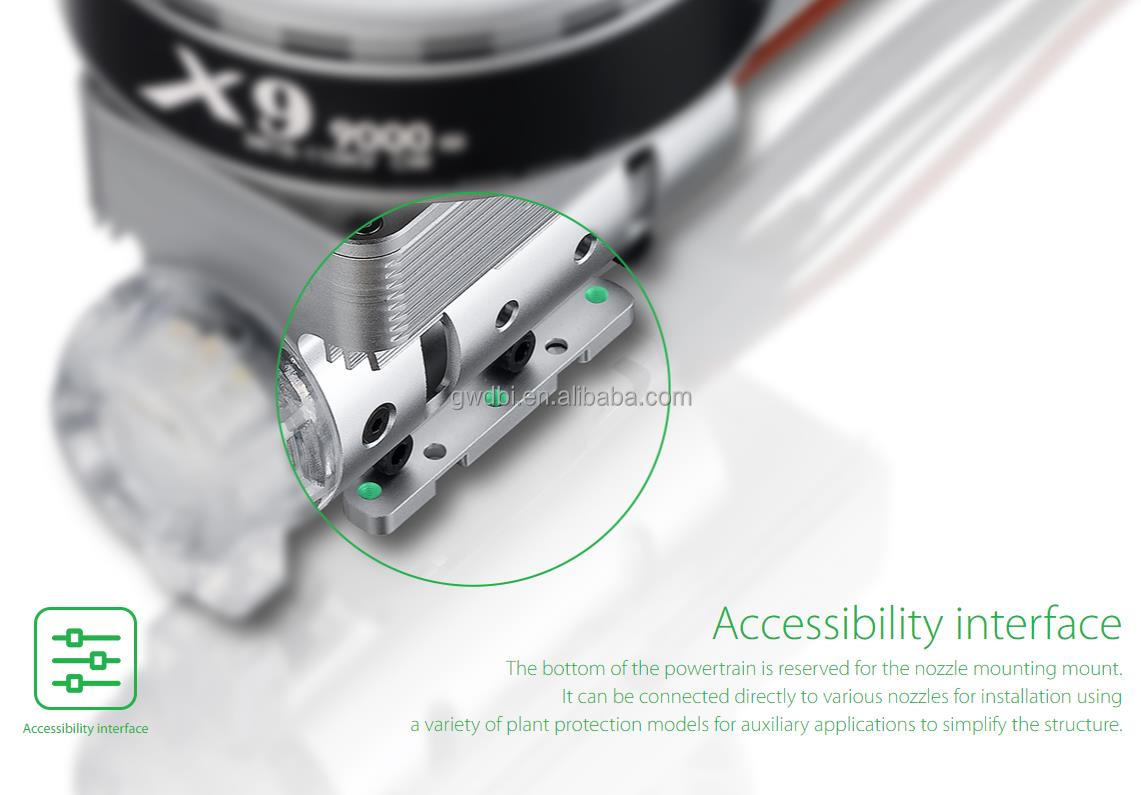

Nozzle Mounting Holes
|
φ28.4mm-2*M3
|
|||||
|

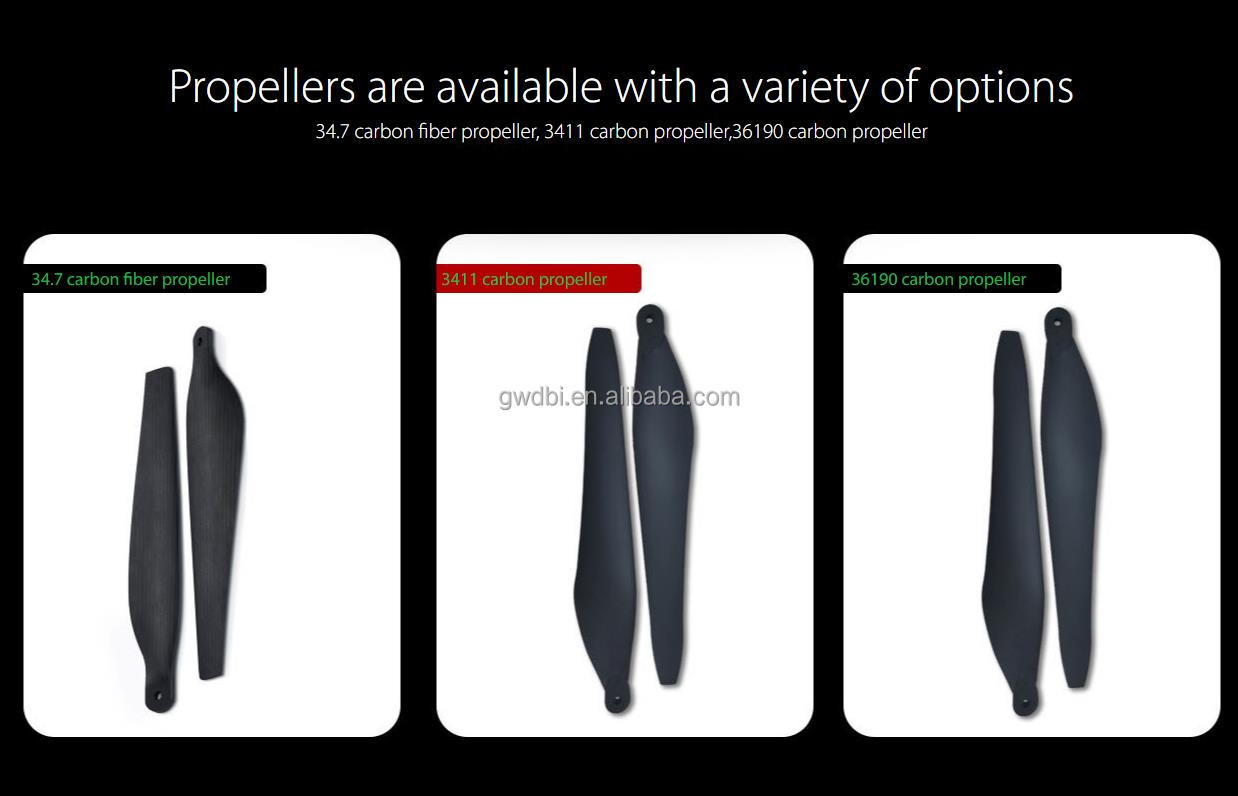

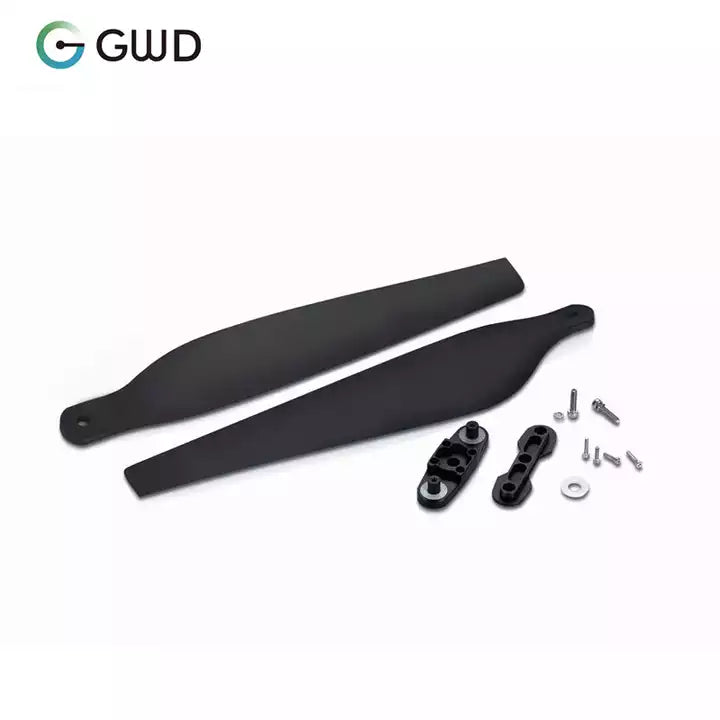

Recommended Propeller
|
Diameter×Pitch
|
2388
|
3090
|
3411
36190 |
36190
|
36190
|
