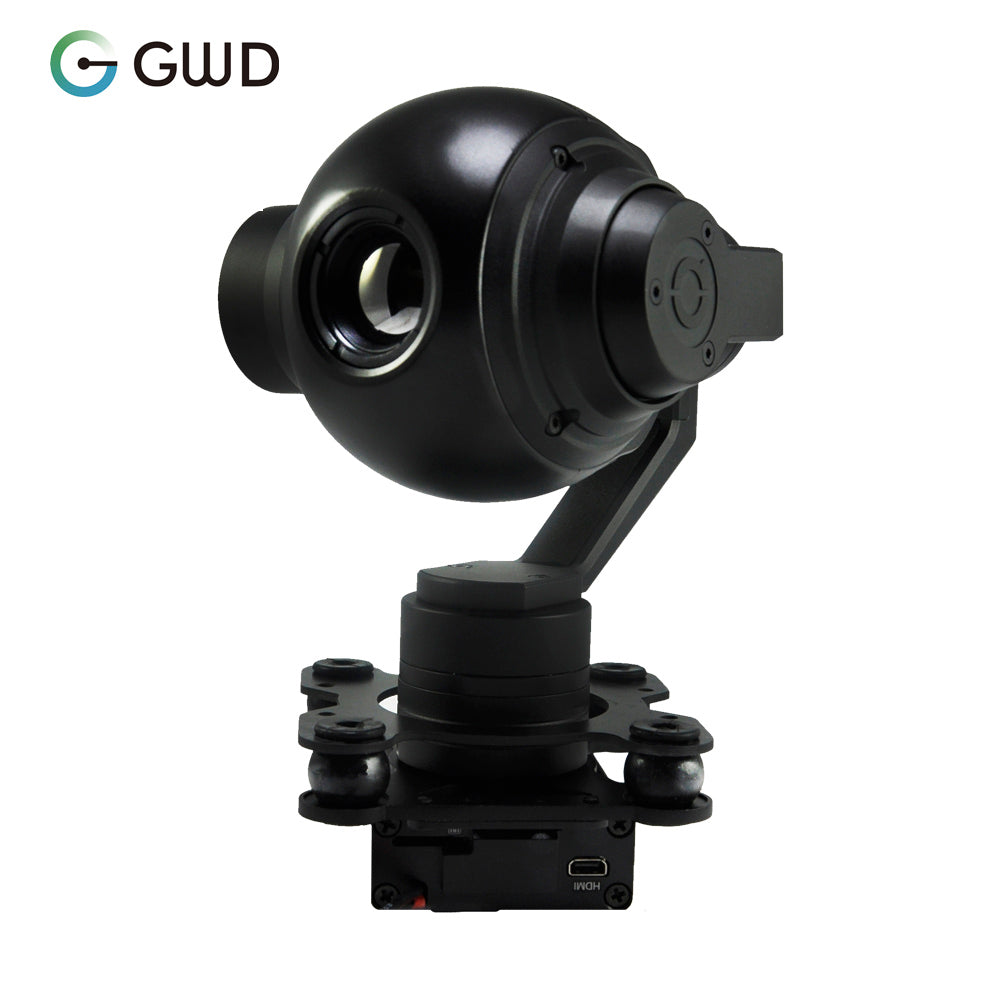

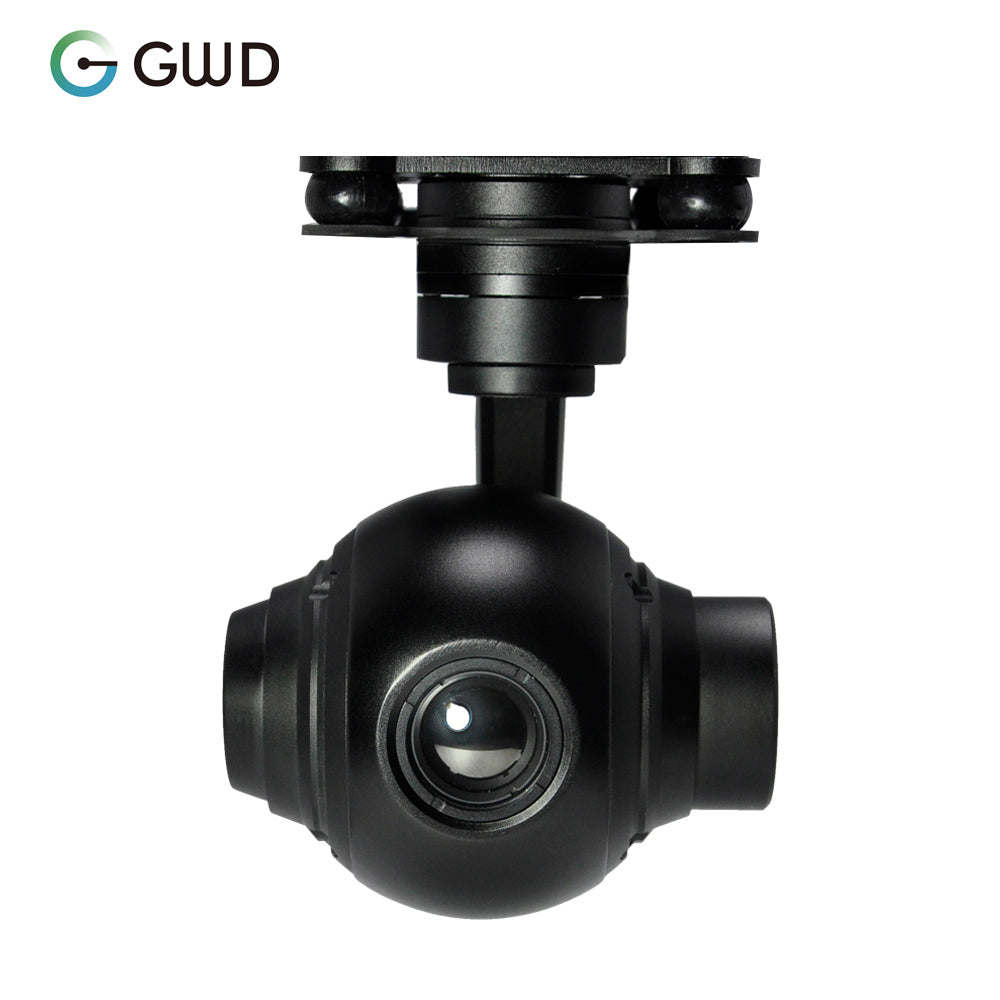

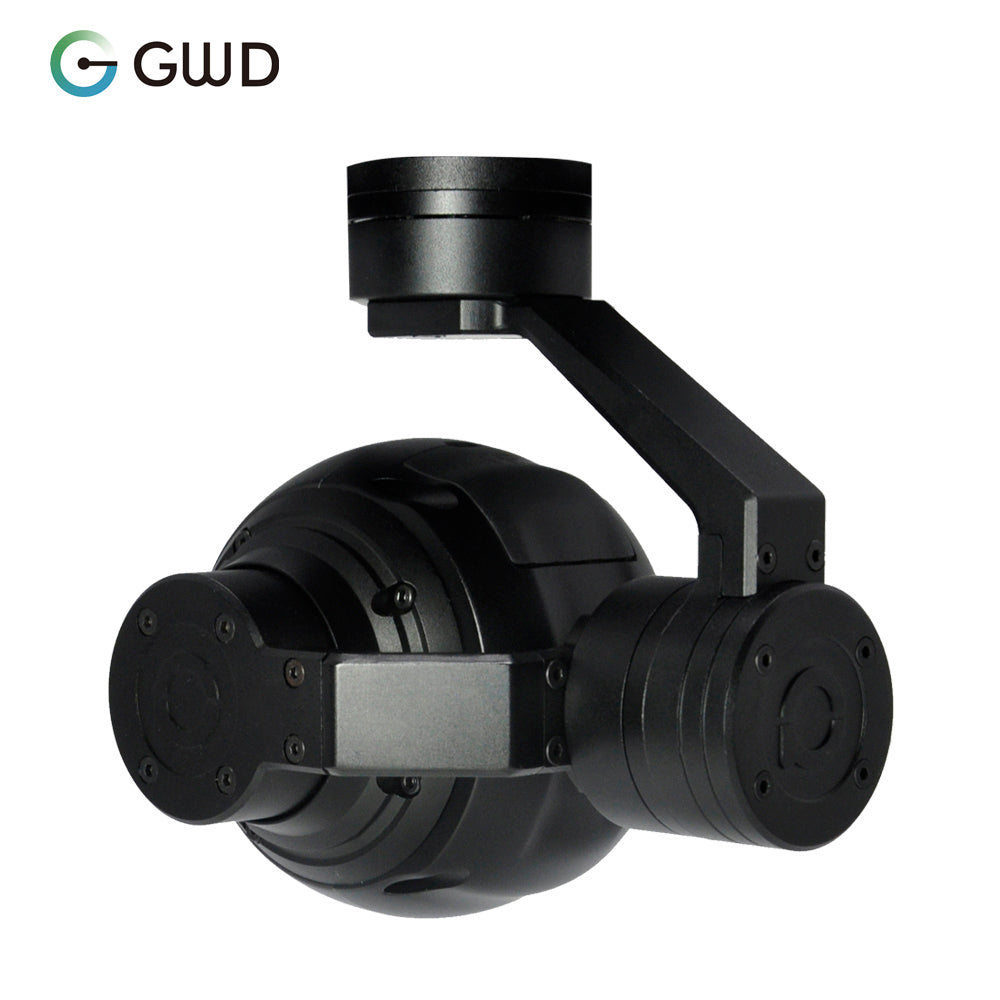

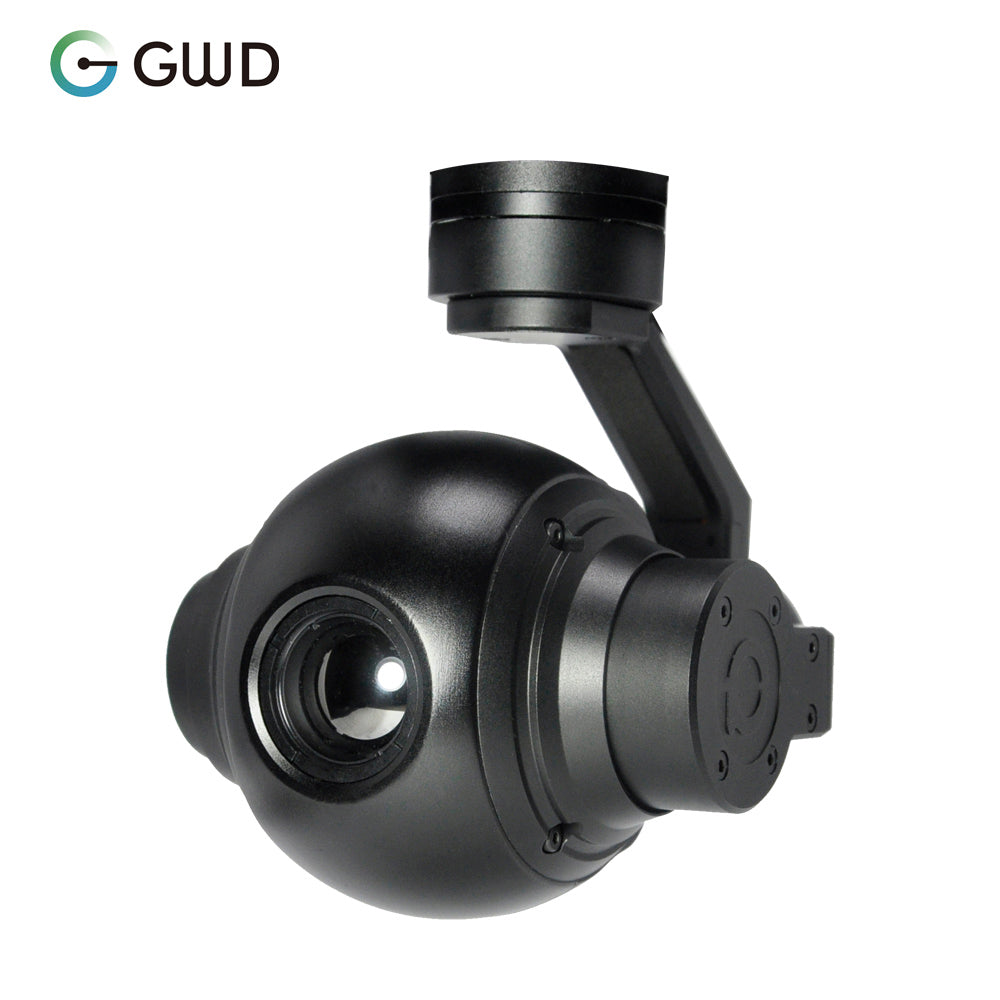

GWD-QIR19 Custom Professional IR 19mm lens 4x Digital Zoom Gimbal Infrared Thermal Imaging Camera
GWD-QIR19 Custom Professional IR 19mm lens 4x Digital Zoom Gimbal Infrared Thermal Imaging Camera
Regular price
$7,199.00
Regular price
$7,679.00
Sale price
$7,199.00
Unit price
per
Couldn't load pickup availability
Custom Professional IR 19mm lens 4x Digital Zoom Gimbal Infrared Thermal Imaging Camera
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S(12V~24V)
|
|
Dynamic current
|
400mA @ 12V
|
|
Idle current
|
300mA @ 12V
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
micro HDMI 576i 50fps / AV
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
PWM / TTL / S.BUS
|
|
Gimbal Spec
|
|
|
Angle scope of structure design
|
Pitch/Tilt: ±100°, Roll: ±70°, Yaw/Pan: ±300°
|
|
Angle scope of software design
|
Pitch/Tilt: -45°～90°, Yaw/Pan: ±290°
|
|
Vibration angle
|
Pitch/Roll: ±0.02°, Yaw：±0.02°
|
|
One-key to center
|
√
|
|
Thermal Imager Spec
|
|
|
Lens size
|
19mm
|
|
Horizontal FOV
|
32°
|
|
Vertical FOV
|
24°
|
|
Diagonal FOV
|
39.4°
|
|
Detective Distance (Man: 1.8x0.5m)
|
559 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
140 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
70 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
1714 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
428 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
214 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Photo storage format
|
JPG(704*576)
|
|
Video storage format
|
AVI (704*576 25fps)
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Prime lens
|
|
NETD
|
≤60mK (@30℃)
|
|
Image enhancement
|
Digital image details enhancement technology, 2 enhancement mode
|
|
Color palette
|
Outline-drawning, white hot, black red, green blue yellow red,ect. 12 color palette
|
|
Auto Non-uniform correction
|
Digital thermal image correction technology
|
|
Digital zoom
|
1x ~ 4x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Optional: max temp, min temp, FOV center temp, average temp
|
|
Temperature warning
|
Optional: overheat warning
|
|
Packing Information
|
|
|
N.W.
|
440g
|
|
Product meas.
|
105*91*98mm
|
|
Accessories
|
1pc gimbal device, 8pcs screws, 4pcs copper cylinders, 4pcs damping balls, 1set damping board / Hight quality plastic box with
foam cushion |
|
G.W.
|
1550g
|
|
Package meas.
|
260*180*280mm
|
