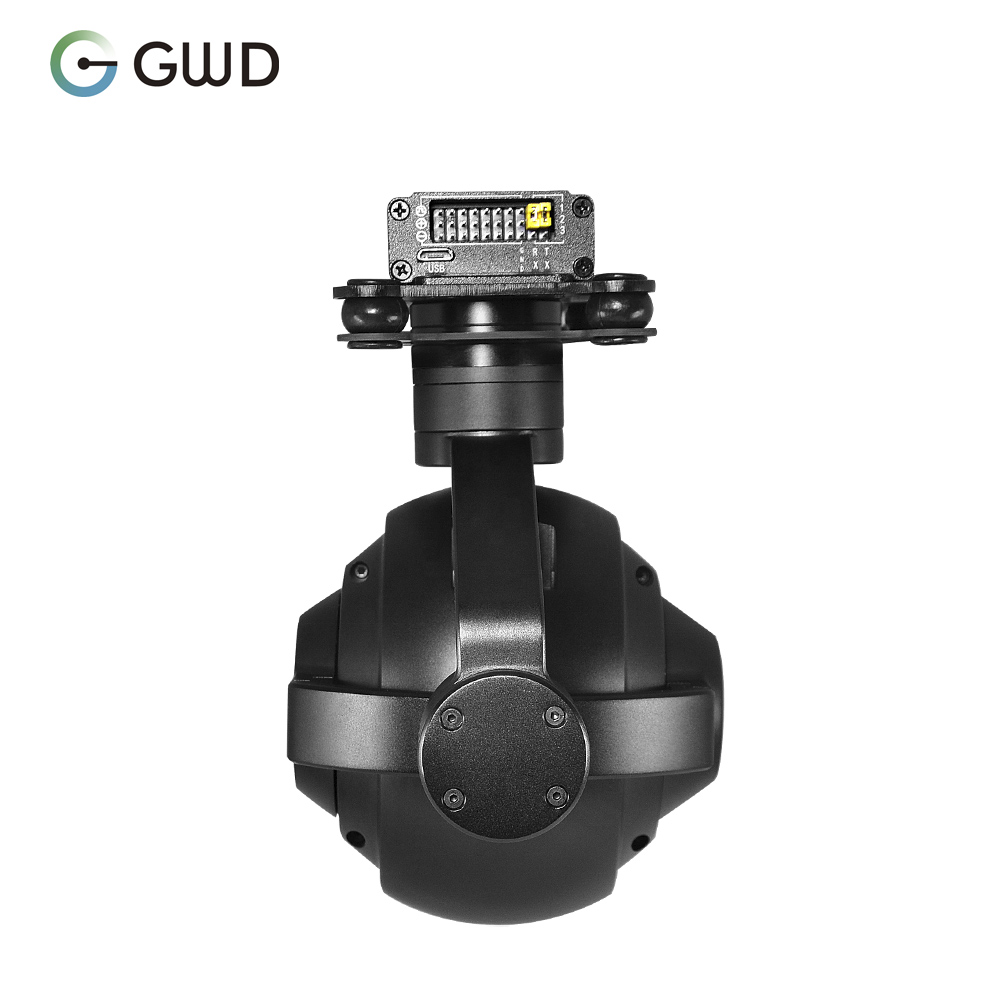

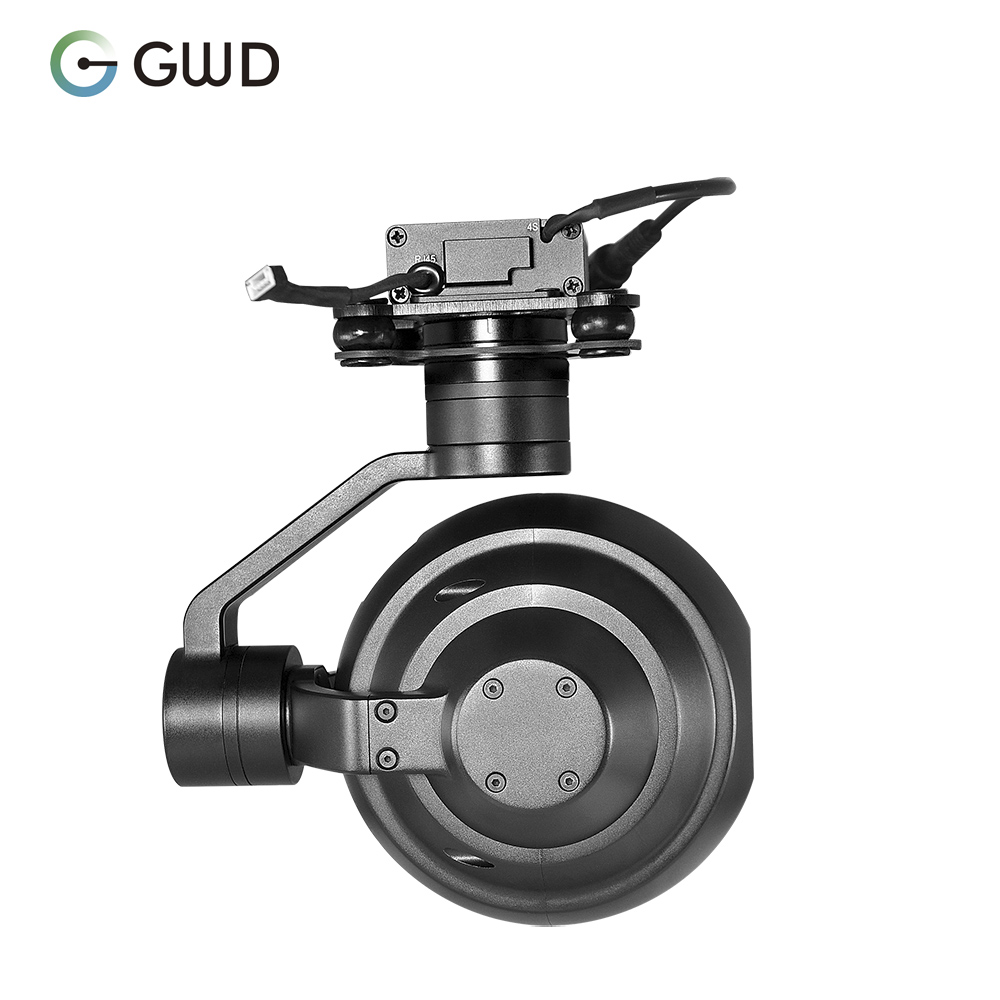

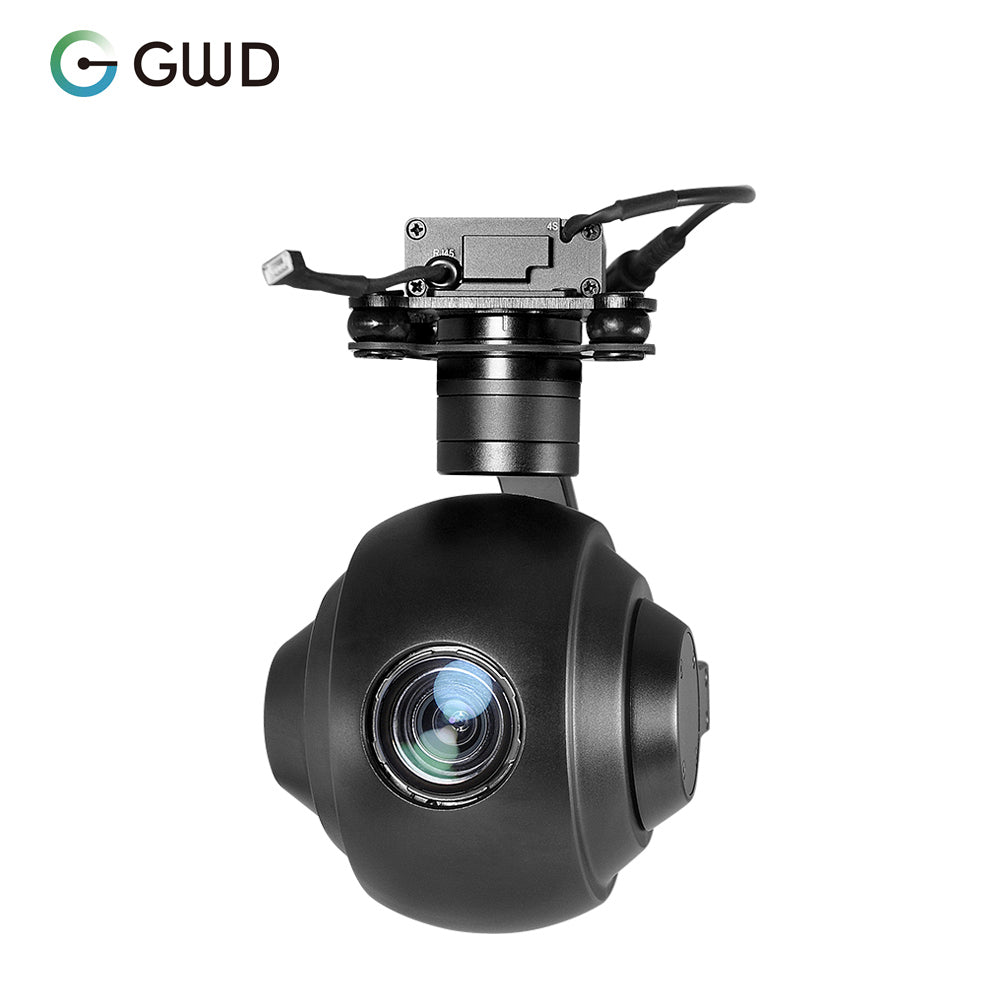

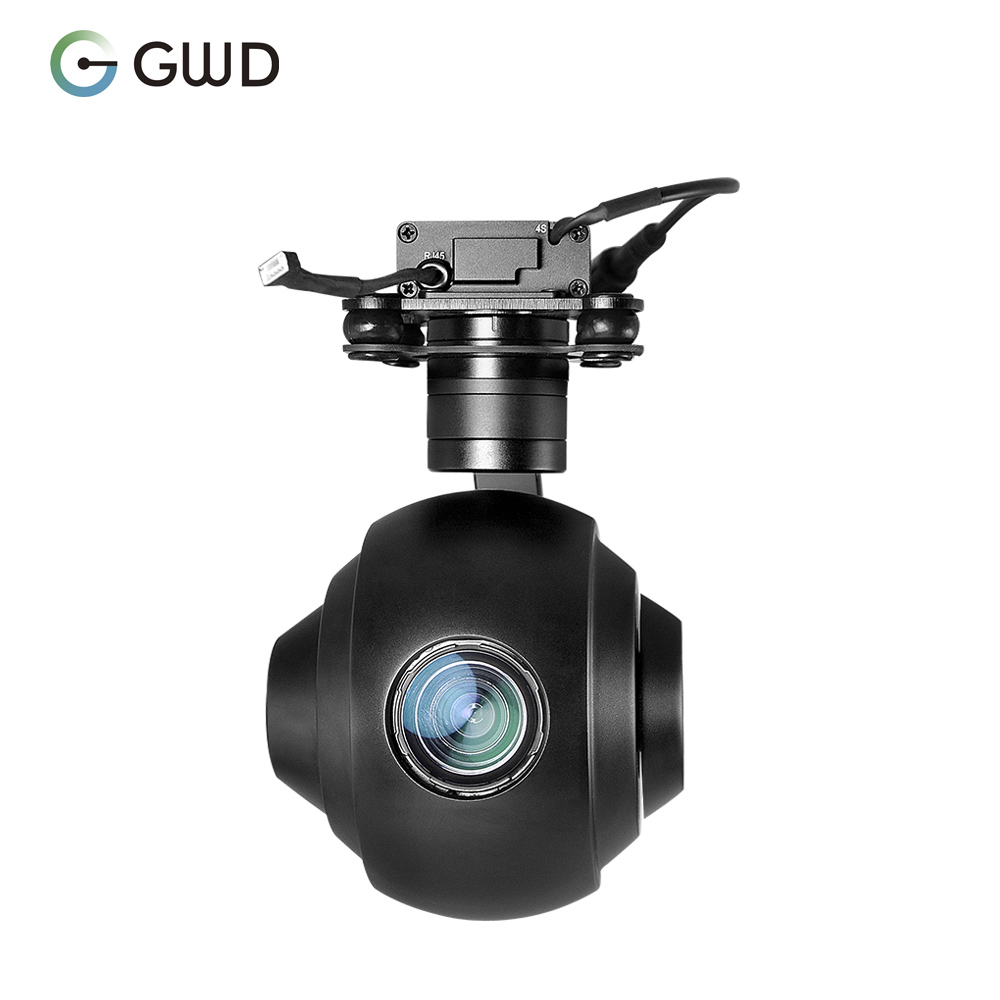

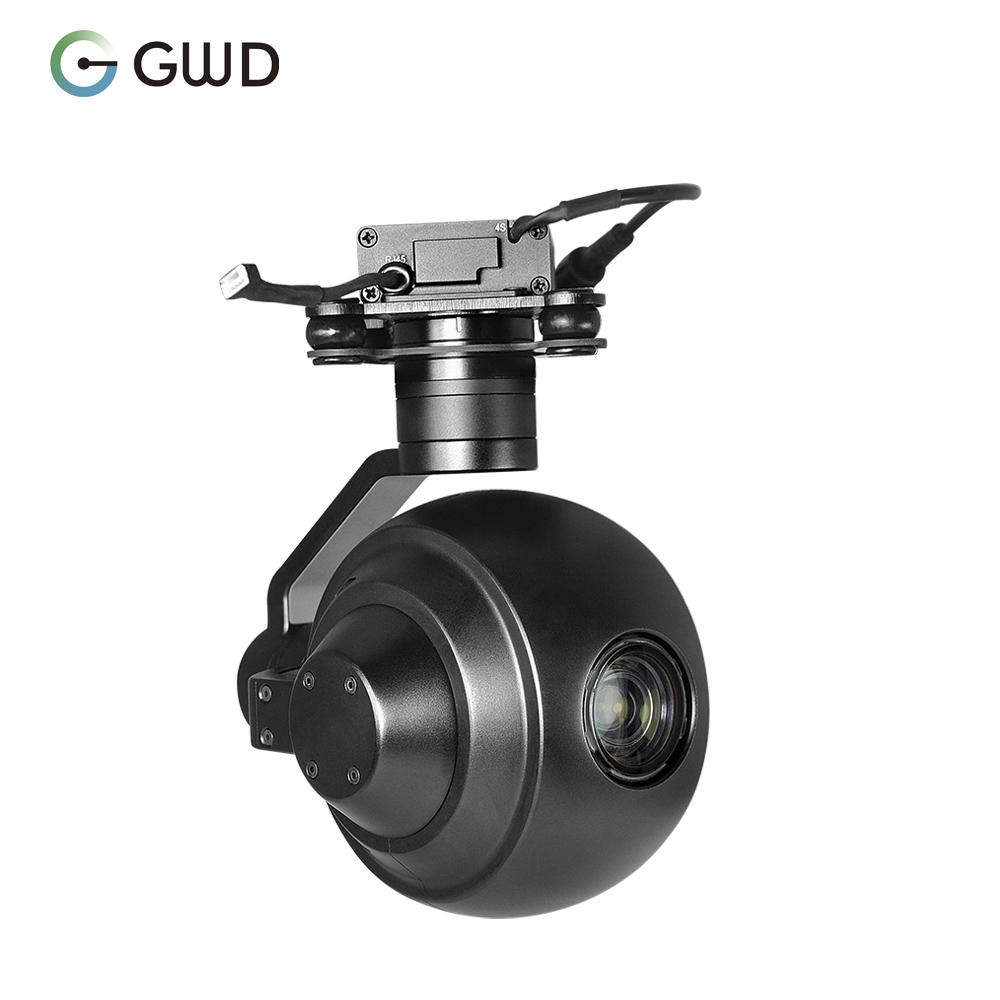

GWD-Q20T 3-axis SONY 20x Optical Dome Zoom 4K EO Wifi Auto AI Human Self Tracking Stabilizer Payload Gimbal Camera For UAV
GWD-Q20T 3-axis SONY 20x Optical Dome Zoom 4K EO Wifi Auto AI Human Self Tracking Stabilizer Payload Gimbal Camera For UAV
Regular price
$7,200.00
Regular price
Sale price
$7,200.00
Unit price
per
Couldn't load pickup availability
Quick Details
Lead time:
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-Q20T |
| Warranty: | 1 Year |
| Special Features: | Human Motion Tracking, Motion Detection |
| Sensor: | CMOS |
| Style: | Mini camera |
| Function: | RESET, Wide Angle |
| Video Compression Format: | H.264 |
| Data Storage Options: | Micro SD card, SD Card |
| Application: | Outdoor, Indoor |
| Customized support: | Online technical support, Customized logo, Software reengineering, OEM, ODM |
| Product name: | Professional drone tracking camera |
| Working voltage: | 12v |
| Input voltage: | 3S ~ 6S |
| Working environment temp: | -20℃ ~ +60℃ |
| Output: | IP (4K 2160P/1080p25 30 optional) /micro HDMI1080P60 |
| Local-storage: | SD card |
| Control method: | PWM / TTL / S.BUS |
| Use for: | For uav / drone camera |
| OEM/ODM: | Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. time (days) | 15 | 35 | To be negotiated |
Products Description
GWD-Q20T 3-axis SONY 20x Optical Dome Zoom 4K EO Wifi Auto AI Human Self Tracking Stabilizer Payload Gimbal Camera For UAV
Product Features

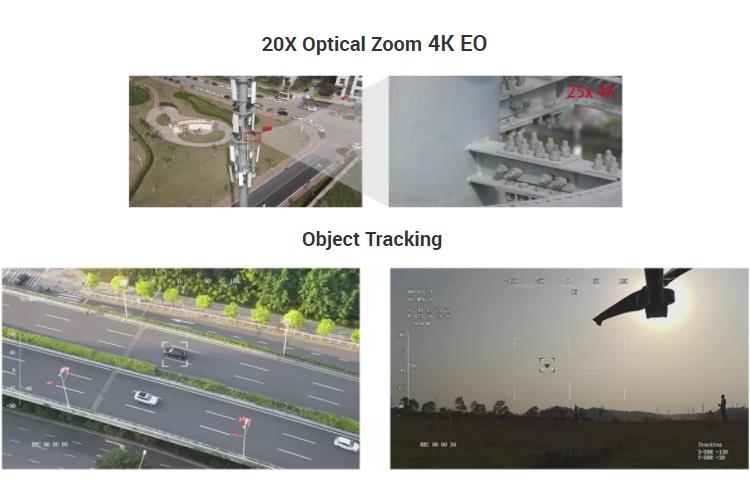

Q20T features 20x optical zoom 4K EO and auto tracking function. It is a 3-axis gimbal camera for UAV, Alluminum alloy hosing is ideal for light weight meanwhile keeping perfectly anti-interference and cooling. It outputs and records FHD 1080p video with OSD.
Connected to GPS module it has geo tagging funcion. Combining with high-precise stabilisation system and automatic thermal compensation algorithm, the gimbal can fulfill high level stablization requirements without thermal drifting.
Powered by SONY 1/2.5" "Exmor R" CMOS module, with 0.01 lux@F1.6 minillumination, 8.51 mega effective pixel and 1080p FHD image quality, combined with 20x advanced optical zoom technology, the observation range is up to 2000 meters, which can meet the application requirements of various domains.
Powered by SONY 1/2.5" "Exmor R" CMOS module, with 0.01 lux@F1.6 minillumination, 8.51 mega effective pixel and 1080p FHD image quality, combined with 20x advanced optical zoom technology, the observation range is up to 2000 meters, which can meet the application requirements of various domains.
|
Hardware Parameter
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
900mA @ 12V
|
|
Idle current
|
800mA @ 12V
|
|
Power consumption
|
≤ 6W
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
IP (4K 2160P/1080p25 30 optional) /micro HDMI1080P60
|
|
Local-storage
|
SD card (Up to 128G,class 10, FAT32 or ex FAT format) (4K/1080p optional)
|
|
Control method
|
PWM / TTL / S.BUS
|
|
Camera Spec
|
|
|
Imager Sensor
|
SONY 1/2.5" "Exmor R" CMOS
|
|
Signal system
|
4K: 2160P/29.97,2160P/25
FHD: 1080P/59.94,1080P/50,1080i/59.94,1080i/50,720P/59.94,720P/50 |
|
Effective pixel
|
8.51MP
|
|
Lens optical zoom
|
20x, F2.0 to F3.8
|
|
Digital zoom
|
12x (240x with optical zoom)
|
|
Min object distance
|
80 mm (Wide end), 800 mm (Tele end)
|
|
Min illumination
|
1.6 lux (1/30 sec, 50%, ICR off, High Sensitivity mode Off )
|
|
0.4 lux (1/30 sec, 50%, ICR Off, High Sensitivity mode On)
|
|
|
0.21 lux (50%, ICR off, Slow Shutter 1/4s, High sensitivity off)
0.06 lux (50%, ICR off, Slow shutter 1/4s, High sensitivity on) |
|
|
Angle of view ( H )
|
70.2°(Wide end) ~ 4.1°(Tele end)
|
|
Sync system
|
Internal/External
|
|
S/N ratio
|
more than 50dB
|
|
Min. working distance
|
80 mm (Wide end), 800 mm (Tele end)
|
|
Exposure control
|
Auto
|
|
Gain
|
Auto
|
|
White balance
|
Auto/Manual
|
|
Shutter speed
|
1/1s to 1/10,000s, 22 steps
|
|
Noise reduction
|
On/Off (level 5 to 1/ Off, 6 steps)
|
|
Defog mode
|
On/Off (Low, Mid, High)
|
|
Focus
|
Auto/Manual/One-time automatic focus
|
|
Lens initialization
|
Built-in
|
|
User presetting bit
|
20 sets
|
|
Image rotation
|
180°, Horizontal/Vertical mirror image
|
|
OSD
|
Yes
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<10ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
16*16 pixel
|
|
Maximum object size
|
160*160 pixel
|
|
Tracking speed
|
±32 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
Control method
|
PWM / TTL / S.BUS
|
|
Packing Information
|
|
|
N.W.
|
627g
|
|

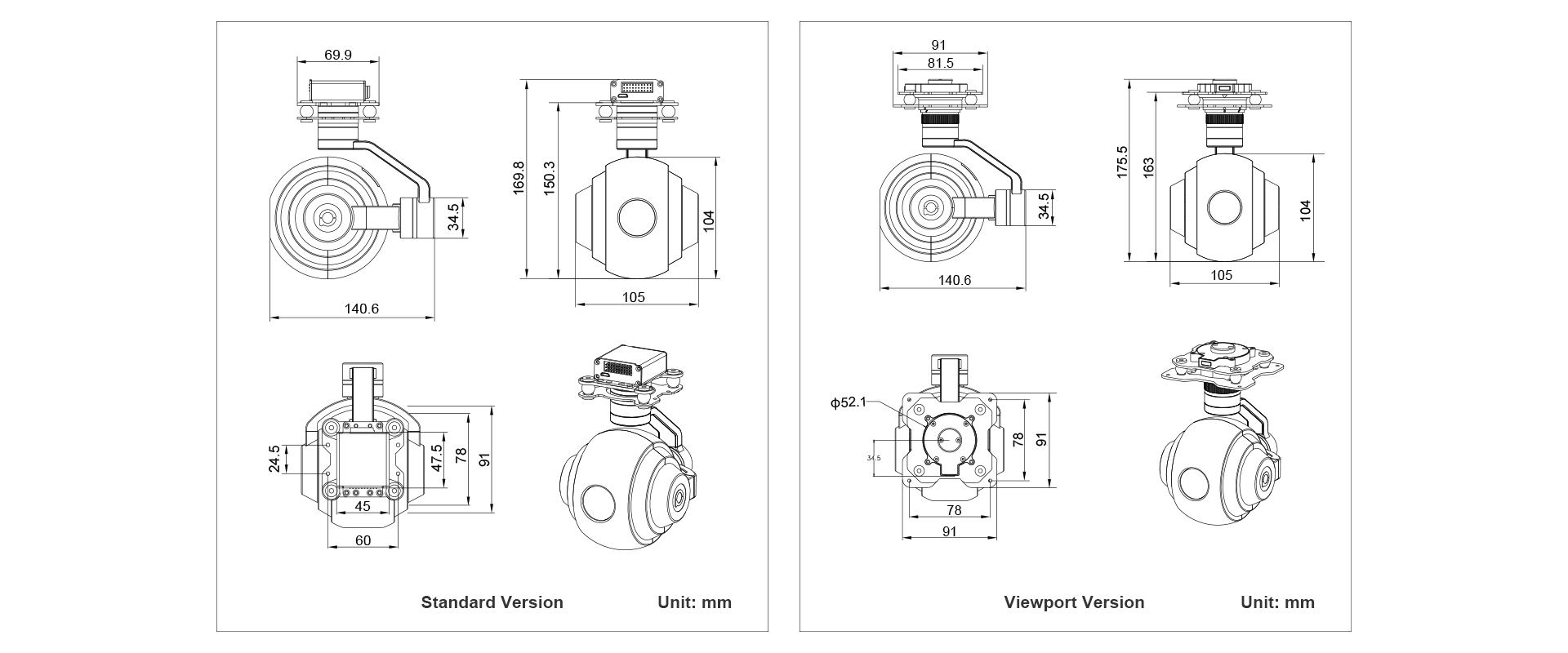

Product meas.
|
105*140.6*150.3mm
|
|
Accessories
|
1pc gimbal camera device, 16pcs screws, 4pcs copper cylinders, 12pcs damping balls, 4pcs damping boards / Hight quality plastic
box with foam cushion |
|
G.W.
|
2266g
|
|
Package meas.
|
260*180*280mm
|
