GWD

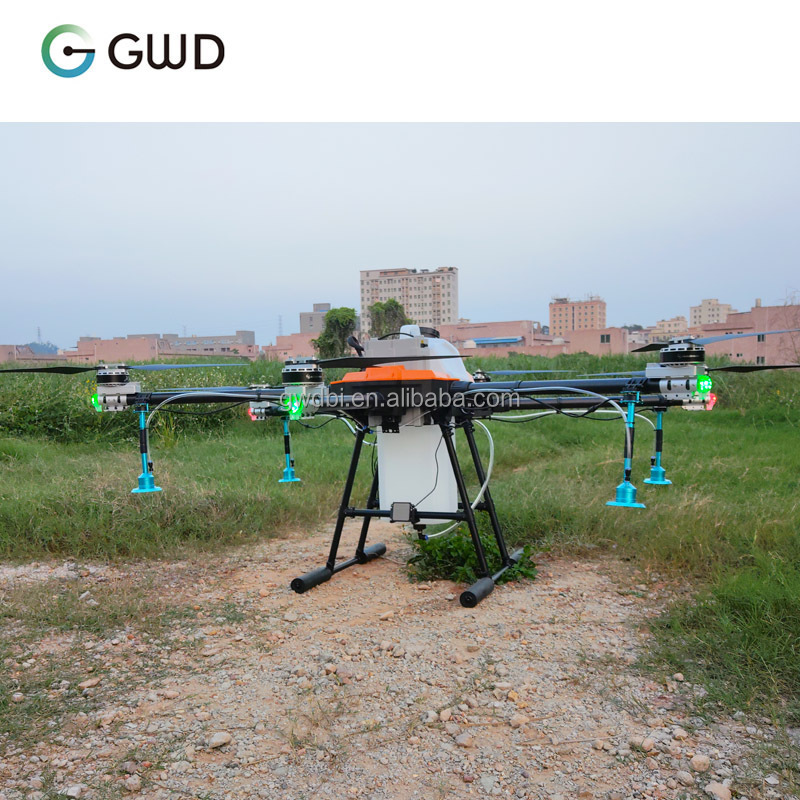

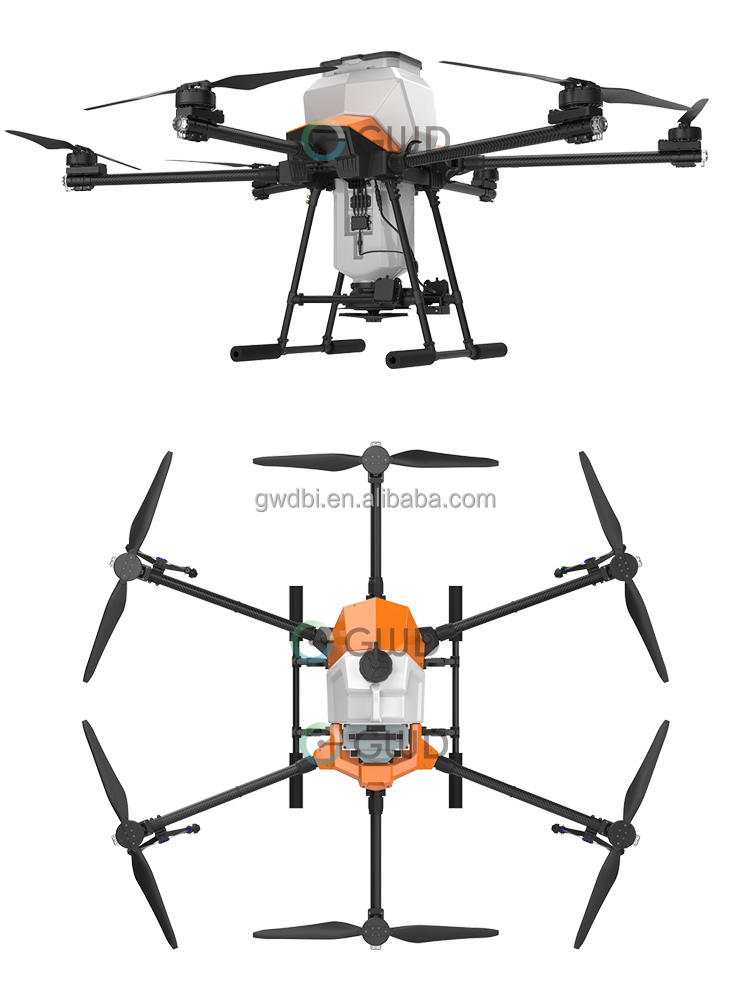

GWD-630B 30L Large Spray Removabal Tank Drones Agricultural Spraying Camera HD Drone Agriculture Sprayer New Trend Products
GWD-630B 30L Large Spray Removabal Tank Drones Agricultural Spraying Camera HD Drone Agriculture Sprayer New Trend Products
Regular price
$6,599.00
Regular price
$7,388.00
Sale price
$6,599.00
Unit price
per
Couldn't load pickup availability
Lead Time:
| Quantity(pieces) | 1 - 3 | 4 - 200 | >200 |
| Est. Time(days) | 15 | 35 | To be negotiated |
Products Description
|
Model Number
|
GWD-630B
|
|
Product Name
|
30L Agricultural Drone
|
|
Brand
|
GWD
|
|
Driving
|
6-Axis
|
|
Maximum Load
|
30 kg
|
|
Maximum Take-off Weight
|
64 kg
|
|
Hovering Endurance Without Load
|
20~25 Minutes
|
|
Hovering Endurance With Load
|
7~10 Minutes
|
|
Maximum Operation Flight Speed
|
8 Meter per Second
|
|
Maximum Operation Wind Speed
|
3 Meter per Second
|
|
Maximum Tolerable Wind Speed
|
8 Meter per Second
|
|
Typical Flight Radius
|
1,000 Meter
|
|
Maximum Flight Altitude
|
2,000 Meter
|
|
Recommended Operation Ambient Humidity
|
<93%
|
|
Recommended Operation Ambient Temperature
|
0~45 Degree C
|
|
Typical Hourly Spraying Area
|
25 Acres
|
|
Nozzle Mode
|
Pressure Sprinkler, 6 Pcs
|
|
Effective Spray Width
|
3~6 Meters
|
|
Maximum Spray Flow
|
8 Liter per Minute
|
|
Maximum Pump Pressure
|
0.5 MPa
|
|
Water Pump Model
|
Plunger Pump, 1 Pcs
|
|
Pesticide Tank Installation Method
|
Removable Tank
|
|
Operation Tank Volume
|
30 Liters
|
|
Manufacturer
|
OKCell or Equivalent
|
|
Installation Method
|
Removable Battery
|
|
Weight
|
9 kg
|
|
Rated Voltage
|
51.8V (14S)
|
|
Charge Voltage
|
58.8V
|
|
Capacity
|
28,000 mAh
|
|
Charge Cycle Time
|
0.5~1 Hour
|
|
Lifetime Charge Cycles
|
300-500 times
|
|
Manufacturer
|
OKCell L6055P or Equivalent
|
|
Dimensions
|
340*195*145mm
|
|
Weight
|
6.5 kg
|
|
Output Channels
|
2 Channels
|
|
Input Voltage
|
110-240 VAC
|
|
Rated Power
|
3,000 W
|
|
Maximum Output Voltage
|
60.9 VDC
|
|
Maximum Charge Current per Channel
|
55 A * 1 Channel (Cyclic Charging)
|
|
Manufacturer
|
Hobbywing X9 Plus
|
|
Motor Quantity
|
6 Pcs
|
|
Motor Stator Size
|
96*20 mm
|
|
Propellers Diameter x Pitch
|
36*120 Inch
|
|
Propellers Quantity
|
6 Sets
|
GWD-630B 30L Large Spray Removabal Tank Drones Agricultural Spraying Camera HD Drone Agriculture Sprayer New Trend Products 2022

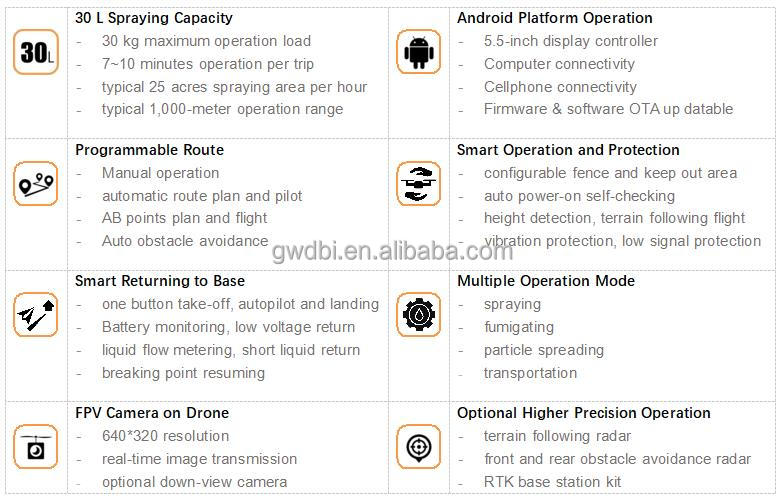

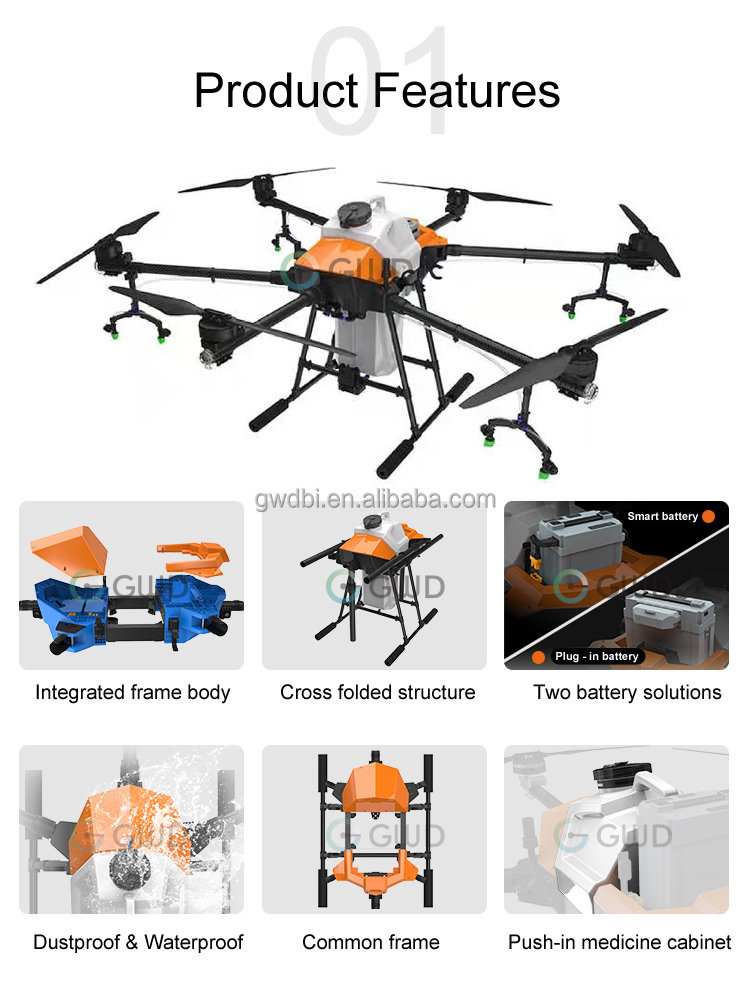

Functional Features ：
