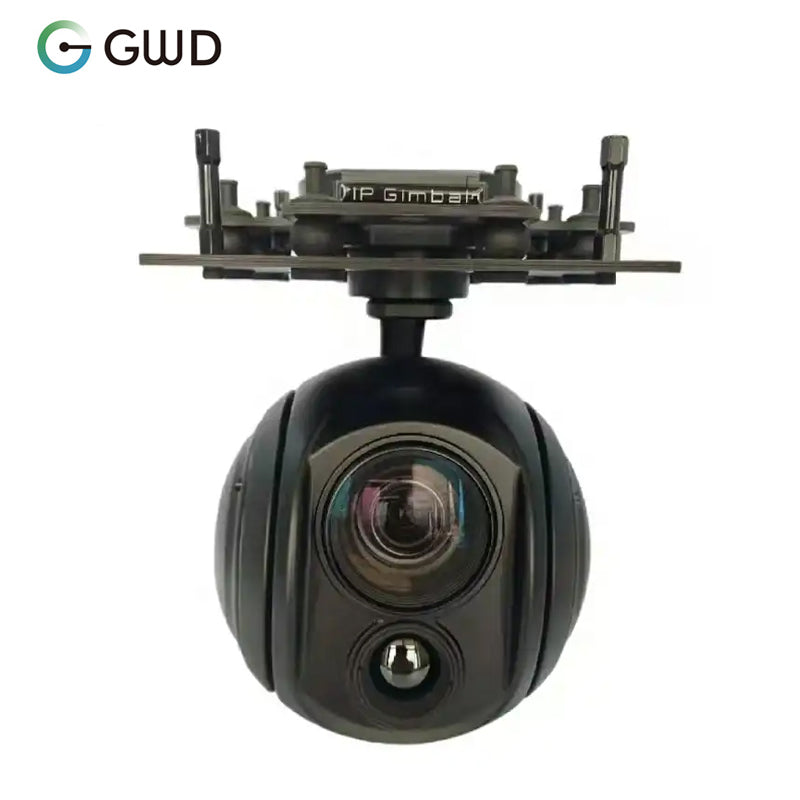

GWD-30G613 30X Optical Zoom IP/HDMI Output 640 Infrared thermal 3-Axis Drone Gimbal Camera
GWD-30G613 30X Optical Zoom IP/HDMI Output 640 Infrared thermal 3-Axis Drone Gimbal Camera
Couldn't load pickup availability

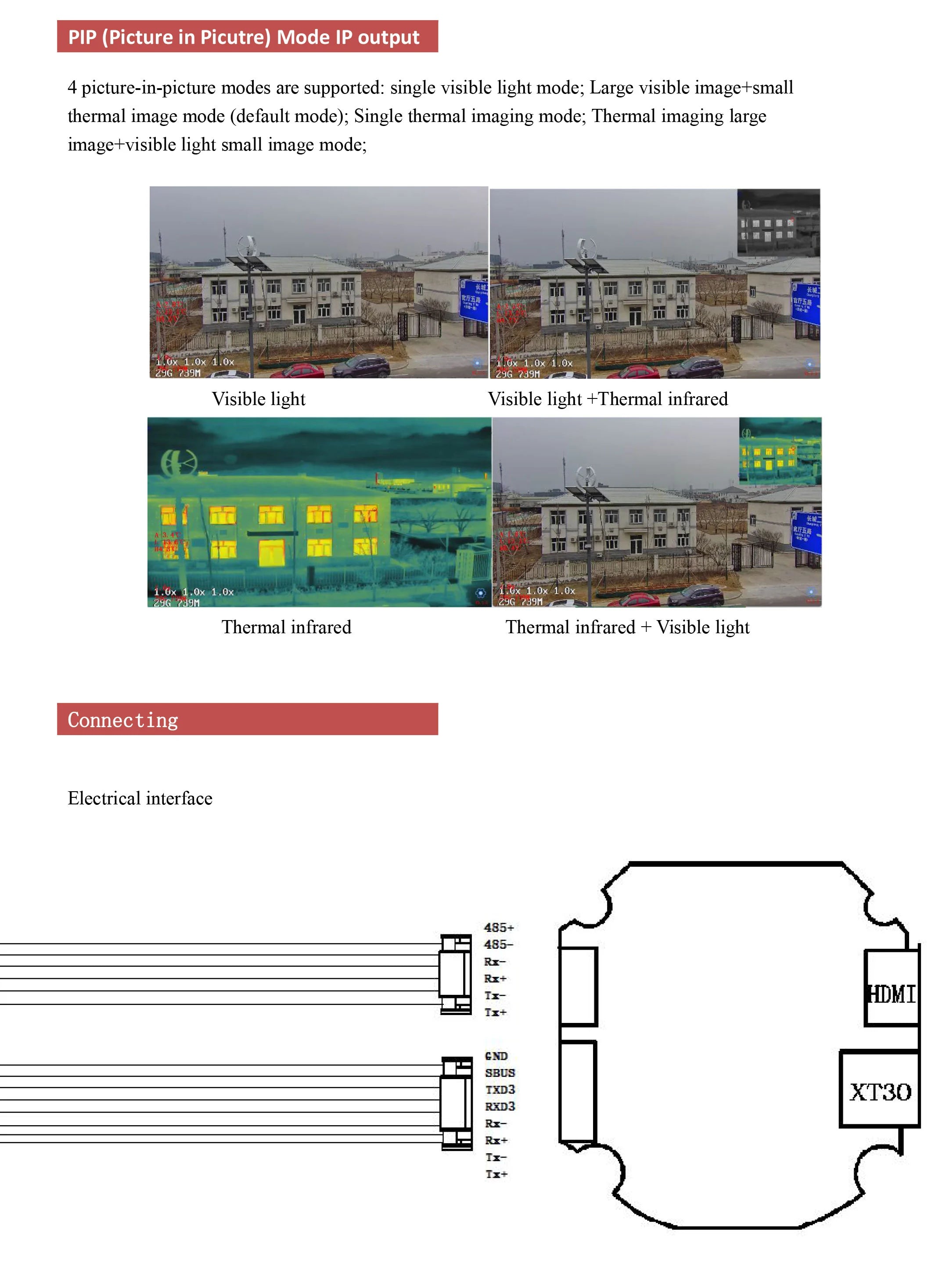

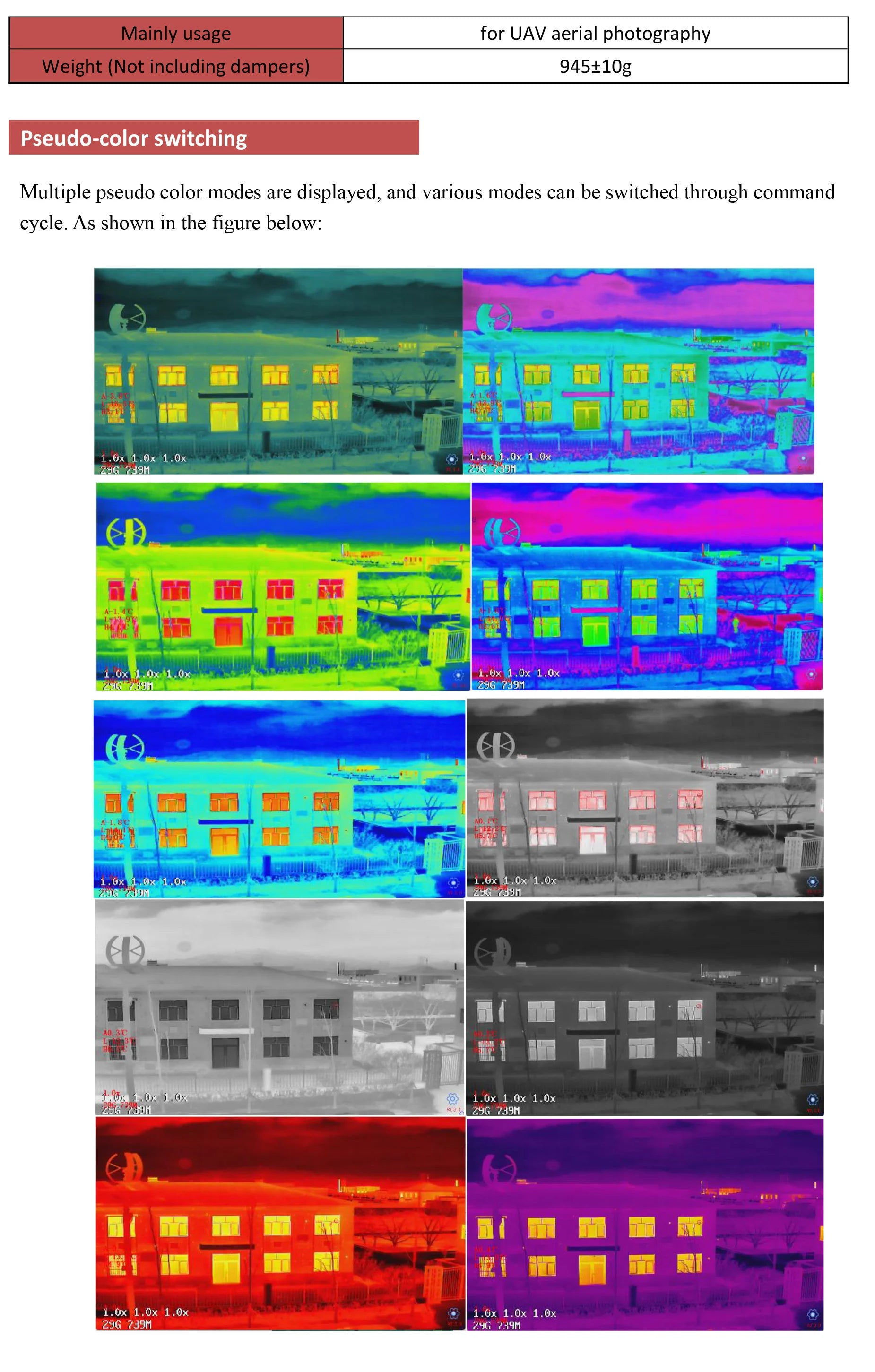

GWD-30G613 is a drone gimbal payload which integrating 30x optical zoom camera, with 640*512 Infrared thermal camera, and 3-axis stabilized PTZ. Both cameras support 9x digital zoom. It adopts IP/HDMI dual output. The visible light camera uses a wide dynamic sensor with 2 mega effective pixels; Thermal camera adopts 640x512 resolution vanadium oxide detector with baffle design. The system supports network RTSP picture-in-picture code stream output, multiple picture-in-picture modes, and multiple pseudo-color switching. The UART and IP can synchronously control the camera and PTZ, and support local TF storage. All metal shell is adopted. This thermal imaging lens has a focal length of 13mm.
|
GWD-30G613 IP/HDMI Dual light Gimbal |
||
|
|
||
|
Voltage |
3S or 6S |
|
|
Power Supply |
Dynamic 7.5W |
|
|
Gimbal Feature |
Roll Angle |
-45~+45° |
|
Pitch Angle |
-50~+120° |
|
|
Yaw Angle |
-280°~+280° |
|
|
Pitch and Roll Jitter Angle |
±0.02° |
|
|
Horizontal Jitter Angle |
±0.03° |
|
|
One-Click Restore |
One-click restore to the initial position |
|
|
Adjustable Gimbal Speed |
Low speed at big zoom status and fast speed control at small zoom status. Adaptively speed control based on zooming of daylight sensor. |
|
|
Visible light Camera Para |
CMOS Size |
1/2.8 inch 2 mega effective pixels CMOS SENSOR |
|
Optical Zoom |
30x HD optical zoom lens, f=4.5±10%~135±10%mm |
|
|
AF Time |
Real time fast focusing, focusing time < 1s |
|
|
Video Output |
IP HD RTSP output 1080P, video stream local TF storage |
|
|
Local Record |
Local TF record，H.264/H265，1080P video stream |
|
|
Field Angle (FOV) |
D : WIDE 67.8º±5% TELE 2.77º±5% H : WIDE 59.8º±5% TELE 2.34º±5% V : WIDE 40.5º±5% TELE 1.48º±5% |
|
|
Support Mode |
1920*1080P, 1280*720，704*576，322*288 30fps |
|
|
Thermal camera Para |
Resolution |
704*576，640*512 pixel |
|
Pixel spacing |
12μm |
|
|
type |
Uncooled vanadium oxide |
|
|
Wavelength range |
8～14μm |
|
|
Thermal sensitivity (NETD) |
≤50mk@25℃@F1.0 |
|
|
Video output |
Network IP output |
|
|
Field angle |
13mmlens，FOV：32.9°x26.6° |
|
|
Measurement function (optional) |
Center point, Lowest and Highest temperature display; Support global temperature measurement |
|
|
Device Size |
120mm×155mm×179mm |
|
|
Work Condition |
-10℃ to +60℃ / 20% to 80% RH |
|
|
Object Measurement Condition |
--20+150℃ |
|
|
Mainly usage |
for UAV aerial photography |
|
|
Weight (Not including dampers) |
925±10g |
|
