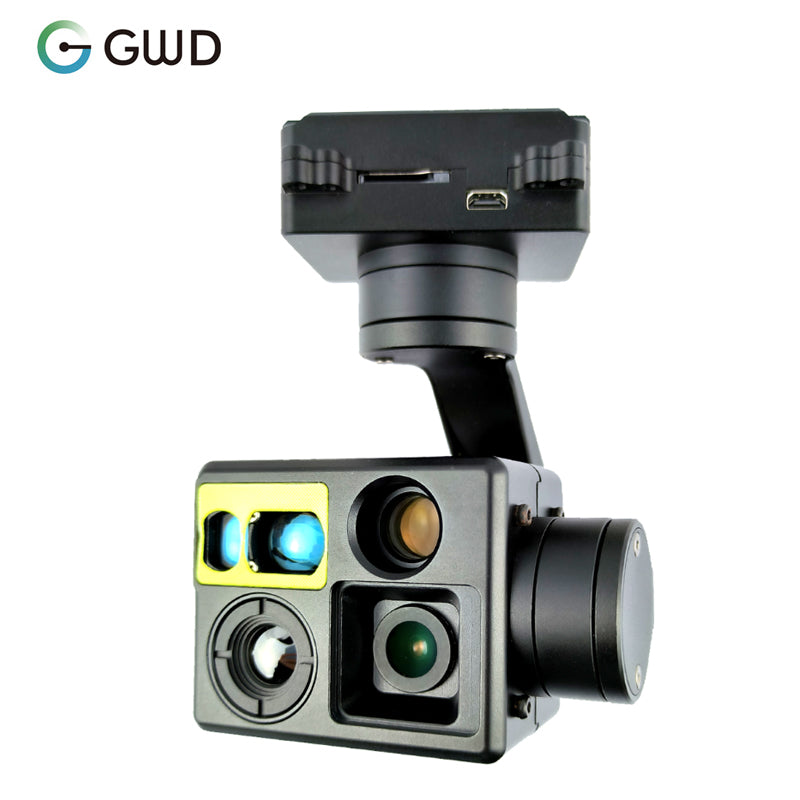

Four Sensor Gimbal Camera Fixed Focus 4K 8MP EO Camera 640X512 IR Thermal Infrared 3-axis Gimbal Drone Surveillance Camera
Four Sensor Gimbal Camera Fixed Focus 4K 8MP EO Camera 640X512 IR Thermal Infrared 3-axis Gimbal Drone Surveillance Camera
Regular price
$7,999.00
Regular price
$9,699.00
Sale price
$7,999.00
Unit price
per
Couldn't load pickup availability
Four Sensor Gimbal Camera Fixed Focus 4K 8MP EO Camera 640X512 IR Thermal Infrared 3-axis Gimbal Drone Camera
Product Features
GWD-KHDA609L12 is a four-sensor integrated system integrating fixed focus 4K 8MP EO camera, fixed focus 1080P 2MP EO camera, 9.1mm lens 640×512 IR camera (uncooled vanadium oxide detector), up to 1200m laser rangefinder, and a high-precision encoder FOC control scheme 3-axis stabilization gimbal. It adopts Ethernet and HDMI dual output. The gimbal camera features the characteristics of high stability, compact size, light weight and low power consumption; This integrated camera system supports RTSP stream real-time video output, 4 Picture-in-Picture modes, 10 pseudo-color display modes, and global temperature measurement function. It can be controlled by serial port①, S.BUS, UDP, UART and PWM. Local TF card dual-channel video recording and photography are supported.
|
Product Number
|
GWD-KHDA609L12
|
|
Working voltage
|
DC 12V~26.2V
|
|
Power Supply
|
Dynamic 6W
|
|
Roll Angle
|
-45° ~ +45°
|
|
Pitch Angle
|
-45°~+100°
|
|
Yaw Angle
|
-150°~+150°
|
|
Angle Jitter In Pitch And Roll
|
±0.02°
|
|
Horizontal Angle Jitter
|
±0.03°
|
|
Gimbal Mode
|
Support gimbal lock /follow mode; one key return to center
|
|
Adjustable Control Speed
|
When the gimbal rotates , speed adaptation is based on the current speedmode and visible light camera magnification
|
|
Control Method
|
Serial port , S BUS , UDP , UART and PWM
|
|
Sensor
|
8 Mega pixels CMOS SENSOR
|
|
Digital Zoom
|
9x digital zoom
|
|
Compressed Storage Mode
|
H264, H265, RTSP video streaming, local TF storage
|
|
Field of View (FOV)
|
25mm lens FOV: 10.5x7.8°
|
|
CMOS Size
|
2 Mega pixels CMOS SENSOR
|
|
Digital Zoom
|
9x Digital Zoom
|
|
Compressed Storage Mode
|
H264, H265, RTSP video streaming, local TF storage
|
|
Field of View(FOV)
|
6 mm lens,FOV:60°x43°
|
|
Laser wave
|
905nm(class 1 laser)
|
|
Detect Range
|
5-1200m
|
|
Accuracy / Resolution
|
640X512
|
|
Pix Spacing
|
12μm
|
|
Type
|
Uncooled Vanaadium Oxide Detector
|
|
Wavelength
|
8~14μm
|
|
Thermal Sensitivity(NETD)
|
≤50mk@F1.0@25℃
|
|
Field Angle
|
9.1mm Lens ; FOV: 48.7°x38.6°
|
|
Measurement (Optional )
|
Average temperature , highest temperature , lowest temperature display
|
|
Product Size
|
120mm * 120mm * H105mm
|
|
Work Condition
|
-10℃ to +55℃ / 20% to 80% RH
|
|
Storage Condition
|
-20℃ to +60℃ / 20% to 95% RH
|
|
Application
|
UAV aerial photography
|
|
Net Weight
|
240g±10g
|
Pseudo-color Mode Switch
Multiple pseudo color modes are displayed , and various modes can be cycled through commandsAs shown in the following figure
PIP mode switch
The device supports 4 display modes of picture in pictureSingle visible light mode2 . Visible light ( arge picture ) + thermal infrared ( small picture ) ( default modeSingle thermal infrared4 . Thermal infrared ( large picture ) + visible light ( small picture )
Connection application diagram
