Drones Accessories Custom Drone Parts & Battery & Detector Propellers For Waterproof Drone
Drones Accessories Custom Drone Parts & Battery & Detector Propellers For Waterproof Drone
Regular price
$1,999.00
Regular price
Sale price
$1,999.00
Unit price
per
Couldn't load pickup availability
Quick Details
|
Place of Origin: |
Guangdong, China |
| Brand Name: |
GWD |
| Model Number: |
Splashdrone 4 |
|
Private Mold: |
NO |
|
Type: |
Drones Accessories |
|
Product name: |
Waterproof drone |
|
Function: |
Portable |
|
OEM/ODM: |
Warmly Welcomed |
| Logo: | Customer Logo Accepted |
Lead Time:
| Quantity(pieces) | 1 - 20 | 21 - 300 | >300 |
| Est. Time(days) | 15 | 40 | To be negotiated |
Products Description
Drones Accessories Custom Drone Parts & Battery & Detector Propellers For Waterproof Drone
For more style drone accessories, please contact us
Parameters:
Aircraft:
- Waterproof Rating: IP67
- Drone Weight (include battery): 2.18 kg/4.8 lb
- Size: 379.2 x 379.2 x 230mm/14.9 x 14.9 x 9.1" (excluding the size of propellers)
- Axis Diameter: 450mm/17.7"
- Max Ascend Speed: 4m/s
- Max Descend Speed: 4m/s
- Max Flight Speed: 22m/s (ATTI)); 10m/s (GPS)
- Max Tilt Angle: 12.5° (ATTI); 25° (ATTI fast)
- Max rotational angular velocity: 150°/s
- Max Takeoff Altitude: 120m/393.7ft (GPS) / ATTI - no limitation
- Maximum wind speed: 72km/h, 20m/s, 39 knots

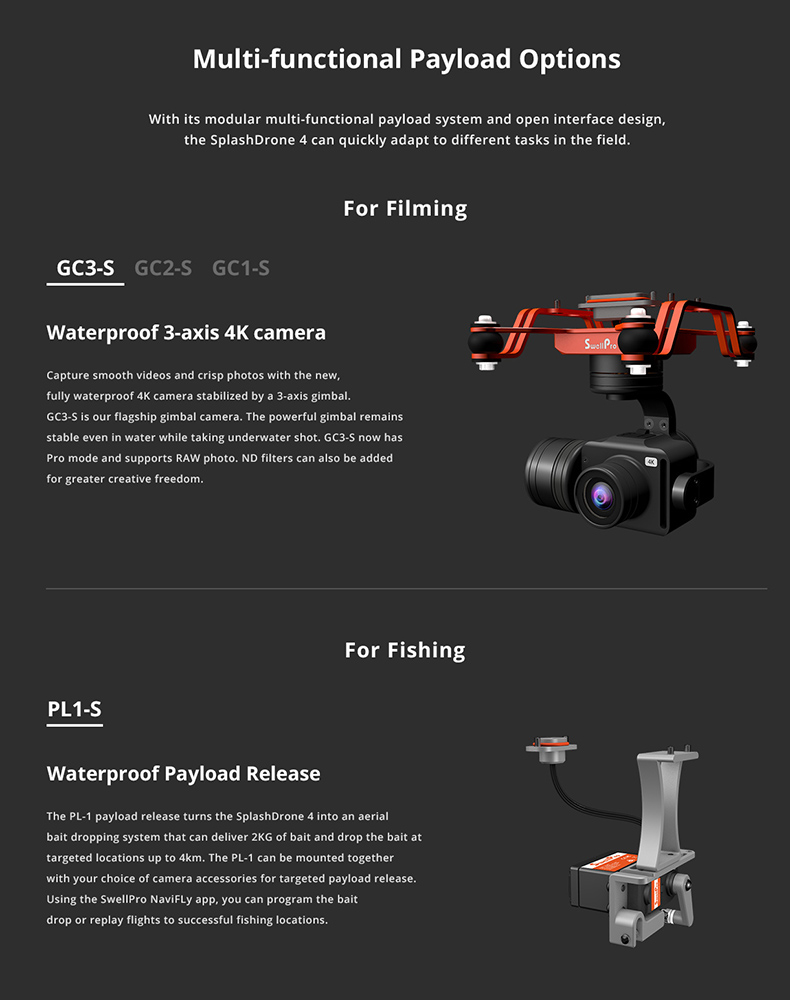

- Max Flight Time: 30mins (no wind & no load) (approx. 25mins with GC3-S, approx. 15mins with load of 1.5kg/3.3 lb)
- Max Flight Distance: 5.0 km
- Max Payload Capacity: 2.0 kg/4.4 lb

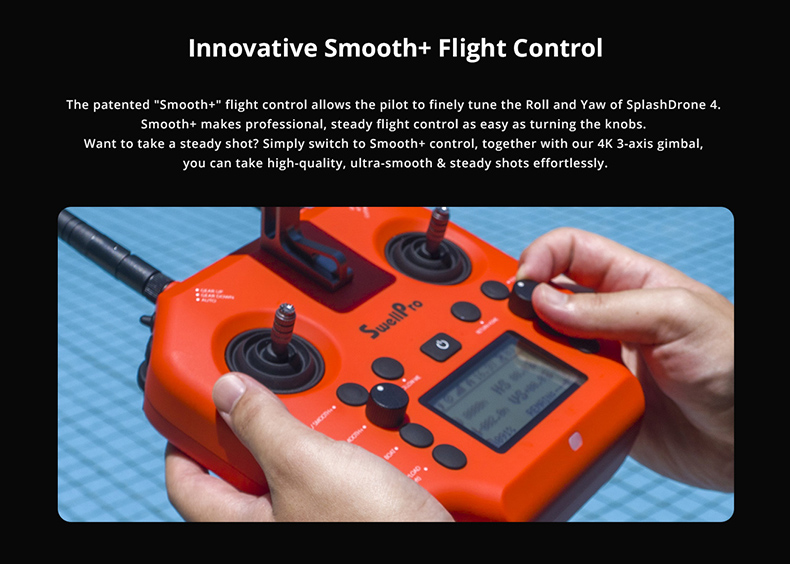

- Flight control: for Hawk
- VTX: for MultiSync
- Motor: #3509-740Kv waterproof
- ESC: 40A (flux)

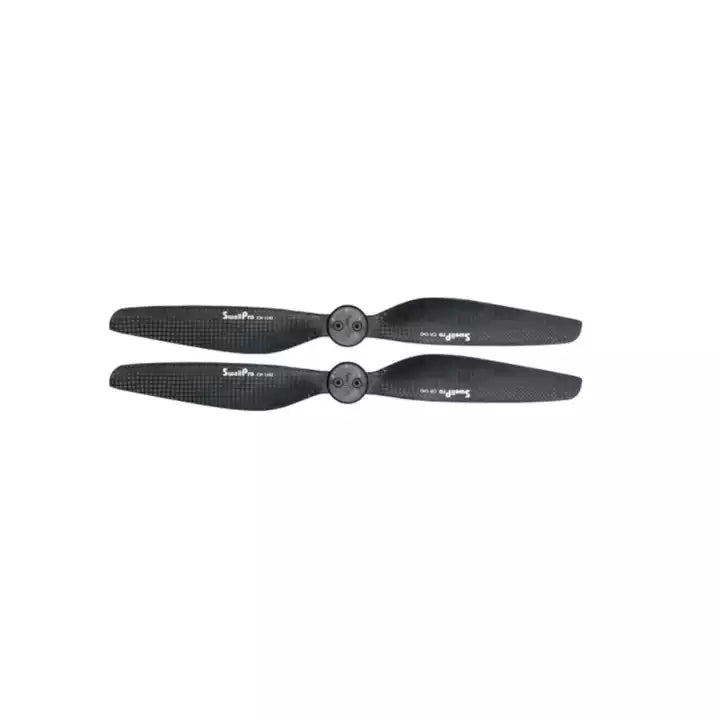

- Propellers: #1242 carbon fiber quick release propellers
- Operating Frequency: 5180 - 5875 MHz
- Transmitter Power (EIRP): FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
- Working Temperature: -10℃ to 40℃
- Satellite Positioning Systems: GPS/GLONASS
- Hovering Precision: ±0.5m/1.6ft (vertical); ±0.5m/1.6ft (horizontal)
- Pass-through Serial Port: Connect to a third-party device and transfer the data of the third-party device to the remote control
- UART (SDK): Allows for TTL serial port to TCP, support baud rate of 115200
- Wi-Fi Hotspot: IP: 192.168.1.101:2222
- Power Input: 12V/2A | 5V/2A
Remote Control:
- Waterproof rating: IP66
- Working frequency: 5180-5875MHz
- Transmitter power (EIRP) FCC/IC: ≤24dBm; CE/SRRC/MIC: ≤20dBm

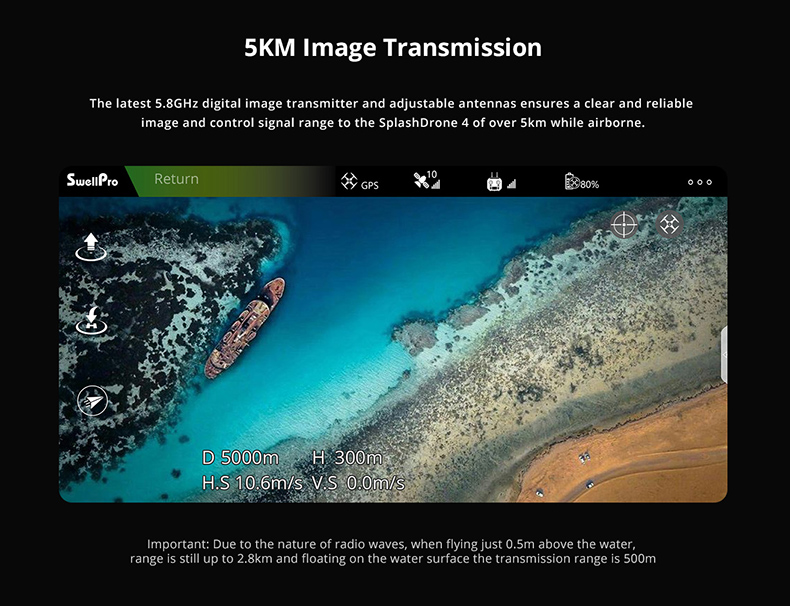

- Real-time video transmission: 720P at 30fps
- Delay: 200ms (depends on the actual shooting environment and mobile device)
- Internal battery: 2S 3600mAh
- Working time: 7 hours
- Working current/voltage: 0.3A/7.4V
- Micro USB port: firmware upgrade/flight log data reading
- SDK port: read flight data and send standard commands to flight control
- Ethernet interface: IP: 192.168.2.220:2222
- Wi-Fi hotspot IP: 192.168.2.220:2020; Password: 12345678
- Mobile phone installation kit: used to install a mobile phone or tablet
- Screen: 2.68", 128x64
- Working temperature: -10℃ to 40℃
- Charging time: 3 hours
- Charging power supply: 5V/2A
Battery:
- Rated capacity: 6600mAh
- Voltage: 14.8V
- Type: Smart 4S LiPo
- Energy: 97.68Wh
- Dimensions: 153.6 x 82.4 x 48.3mm/6 x 3.2 x 1.9"
- Weight: 735g (±5g)/1.6 lb (±0.01 lb)
- Working temperature: -10℃ to 40℃
- Charging time: 90 minutes
- Maximum charging power: 84W
Charger:
- Input: 100-240V, 50/60Hz
- Output: 16.8V at dynamic current/5V at 1.5A
- Rated power: 84.5W
Mobile Device Connection:
- Working frequency: 5180-5875MHz
- Maximum transmission distance: 10m/32.8ft (unobstructed, no interference)
APP:
- APP name: for NaviFly
- Real-time view quality: 720p at 30fps
- Delay: <250ms (depending on environmental conditions and mobile devices)
Package Included:
1. Aircraft*1
2. Remote control *1
3. Quick release blades * 2 pairs
4. Smart lithium battery*1
5. Charger*1
6. Charging cable *1
7. USB data cable*1
8. Remote control charging cable*1
9. Manual *1
10. Spare parts for vulnerable packages*1
11. Suitcase (EPP)
12. L hexagon wrench
Aircraft:
- Waterproof Rating: IP67
- Drone Weight (include battery): 2.18 kg/4.8 lb
- Size: 379.2 x 379.2 x 230mm/14.9 x 14.9 x 9.1" (excluding the size of propellers)
- Axis Diameter: 450mm/17.7"
- Max Ascend Speed: 4m/s
- Max Descend Speed: 4m/s
- Max Flight Speed: 22m/s (ATTI)); 10m/s (GPS)
- Max Tilt Angle: 12.5° (ATTI); 25° (ATTI fast)
- Max rotational angular velocity: 150°/s
- Max Takeoff Altitude: 120m/393.7ft (GPS) / ATTI - no limitation
- Maximum wind speed: 72km/h, 20m/s, 39 knots
- Max Flight Time: 30mins (no wind & no load) (approx. 25mins with GC3-S, approx. 15mins with load of 1.5kg/3.3 lb)
- Max Flight Distance: 5.0 km
- Max Payload Capacity: 2.0 kg/4.4 lb
- Flight control: for Hawk
- VTX: for MultiSync
- Motor: #3509-740Kv waterproof
- ESC: 40A (flux)
- Propellers: #1242 carbon fiber quick release propellers
- Operating Frequency: 5180 - 5875 MHz
- Transmitter Power (EIRP): FCC/IC: ≤ 24 dBm CE/SRRC/MIC: ≤ 20 dBm
- Working Temperature: -10℃ to 40℃
- Satellite Positioning Systems: GPS/GLONASS
- Hovering Precision: ±0.5m/1.6ft (vertical); ±0.5m/1.6ft (horizontal)
- Pass-through Serial Port: Connect to a third-party device and transfer the data of the third-party device to the remote control
- UART (SDK): Allows for TTL serial port to TCP, support baud rate of 115200
- Wi-Fi Hotspot: IP: 192.168.1.101:2222
- Power Input: 12V/2A | 5V/2A
Remote Control:
- Waterproof rating: IP66
- Working frequency: 5180-5875MHz
- Transmitter power (EIRP) FCC/IC: ≤24dBm; CE/SRRC/MIC: ≤20dBm
- Real-time video transmission: 720P at 30fps
- Delay: 200ms (depends on the actual shooting environment and mobile device)
- Internal battery: 2S 3600mAh
- Working time: 7 hours
- Working current/voltage: 0.3A/7.4V
- Micro USB port: firmware upgrade/flight log data reading
- SDK port: read flight data and send standard commands to flight control
- Ethernet interface: IP: 192.168.2.220:2222
- Wi-Fi hotspot IP: 192.168.2.220:2020; Password: 12345678
- Mobile phone installation kit: used to install a mobile phone or tablet
- Screen: 2.68", 128x64
- Working temperature: -10℃ to 40℃
- Charging time: 3 hours
- Charging power supply: 5V/2A
Battery:
- Rated capacity: 6600mAh
- Voltage: 14.8V
- Type: Smart 4S LiPo
- Energy: 97.68Wh
- Dimensions: 153.6 x 82.4 x 48.3mm/6 x 3.2 x 1.9"
- Weight: 735g (±5g)/1.6 lb (±0.01 lb)
- Working temperature: -10℃ to 40℃
- Charging time: 90 minutes
- Maximum charging power: 84W
Charger:
- Input: 100-240V, 50/60Hz
- Output: 16.8V at dynamic current/5V at 1.5A
- Rated power: 84.5W
Mobile Device Connection:
- Working frequency: 5180-5875MHz
- Maximum transmission distance: 10m/32.8ft (unobstructed, no interference)
APP:
- APP name: for NaviFly
- Real-time view quality: 720p at 30fps
- Delay: <250ms (depending on environmental conditions and mobile devices)
Package Included:
1. Aircraft*1
2. Remote control *1
3. Quick release blades * 2 pairs
4. Smart lithium battery*1
5. Charger*1
6. Charging cable *1
7. USB data cable*1
8. Remote control charging cable*1
9. Manual *1
10. Spare parts for vulnerable packages*1
11. Suitcase (EPP)
12. L hexagon wrench
Please contact us for more specific function customization!!
