Drone Accessories & Parts Mini Z10TIR 10x Zoom Thermal Imager Object Tracking Gimbal Camera UAV / drone for DJI
Drone Accessories & Parts Mini Z10TIR 10x Zoom Thermal Imager Object Tracking Gimbal Camera UAV / drone for DJI
Regular price
$12,999.00
Regular price
Sale price
$12,999.00
Unit price
per
Couldn't load pickup availability
Quick Details:
Lead Time:
| Place of Origin: | Guangdong, China |
| Brand Name: | GWD |
| Model Number: |
GWD-Z10TIR |
|
Type: |
Camera |
|
Product name: |
Professional drone camera |
|
Working voltage: |
12v |
|
Input voltage: |
4S ~ 6S |
|
Working environment temp: |
-20℃ ~ +60℃ |
|
Output: |
micro HDMI |
|
Local-storage: |
SD card (Up to 128G, class 10, FAT32 or ex FAT format) |
|
Control method: |
PWM / TTL / SBUS |
|
Use for: |
For uav / drone camera |
|
OEM/ODM: |
Warmly Welcomed |
| Quantity(pieces) | 1 - 5 | 6 - 500 | >500 |
| Est. Time(days) | 15 | 35 | To be negotiated |
Products Description
Drone Accessories & Parts Mini Z10TIR 10x Zoom Thermal Imager Object Tracking Gimbal Camera UAV / drone for DJI

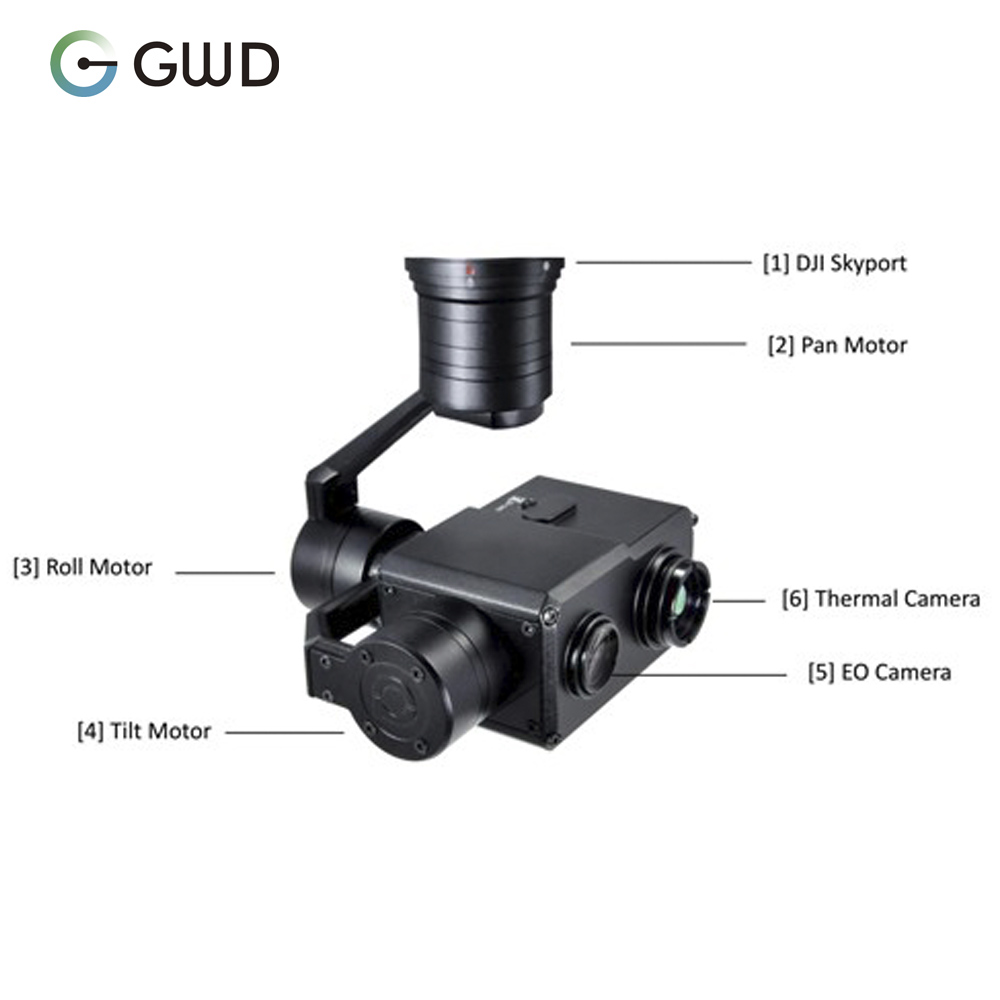

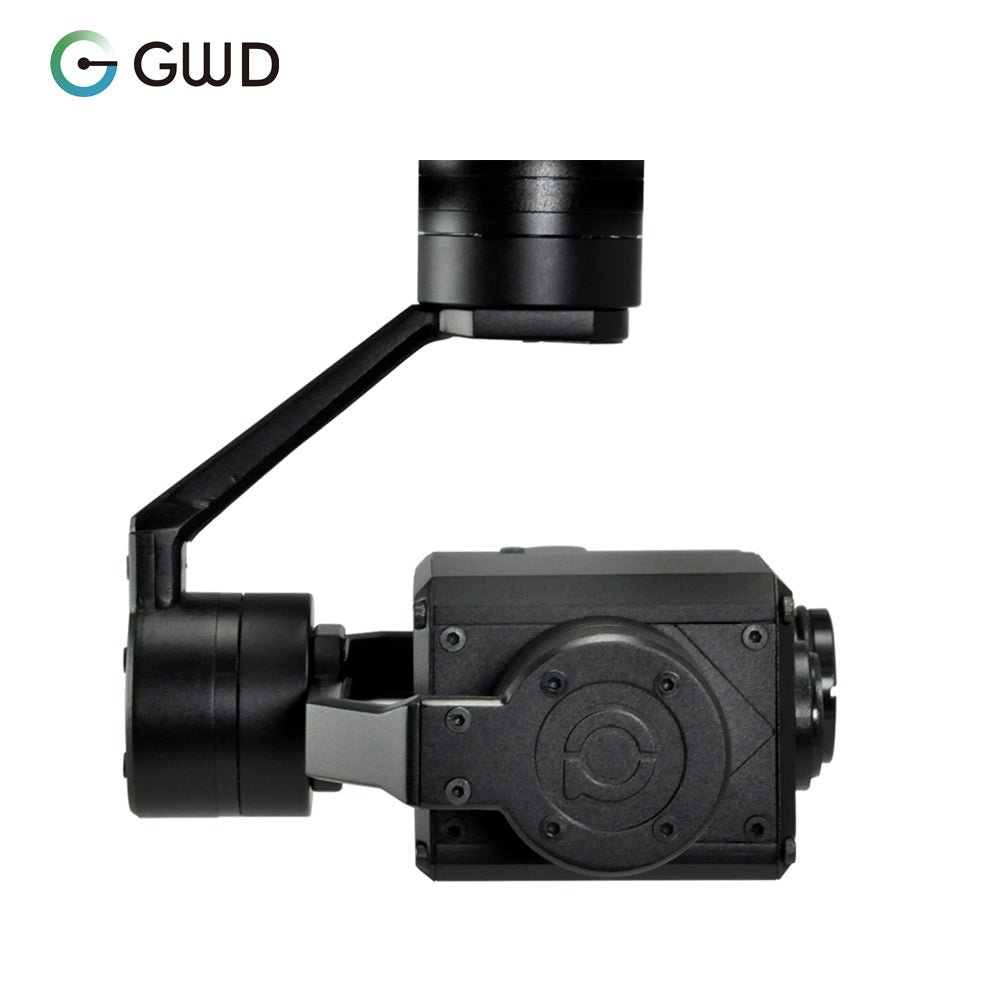

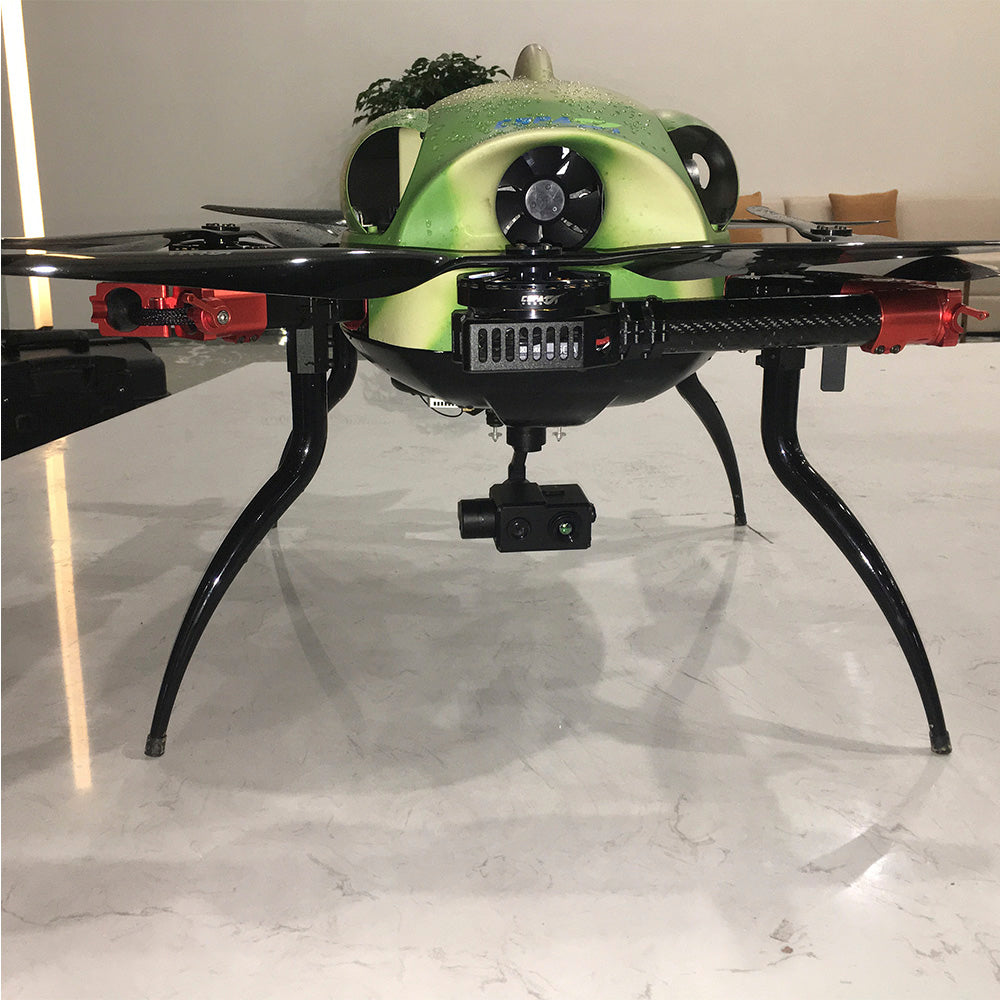

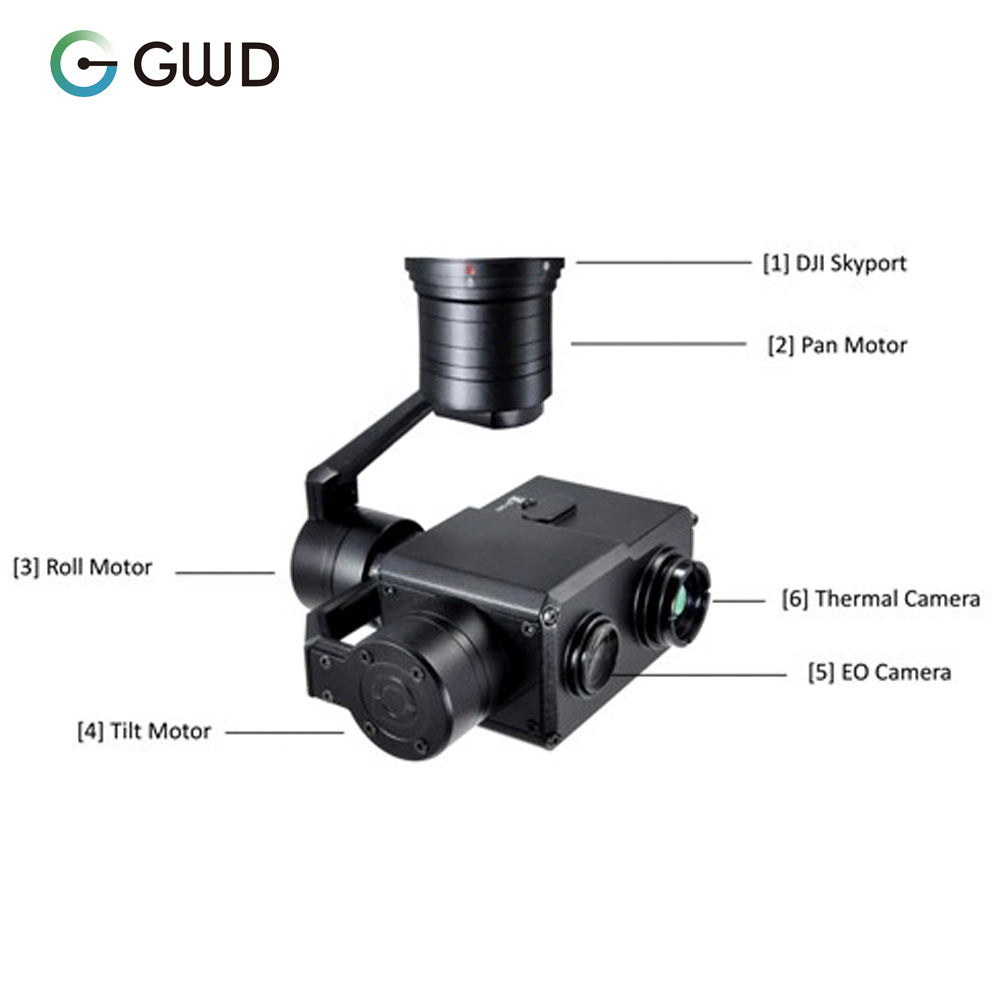

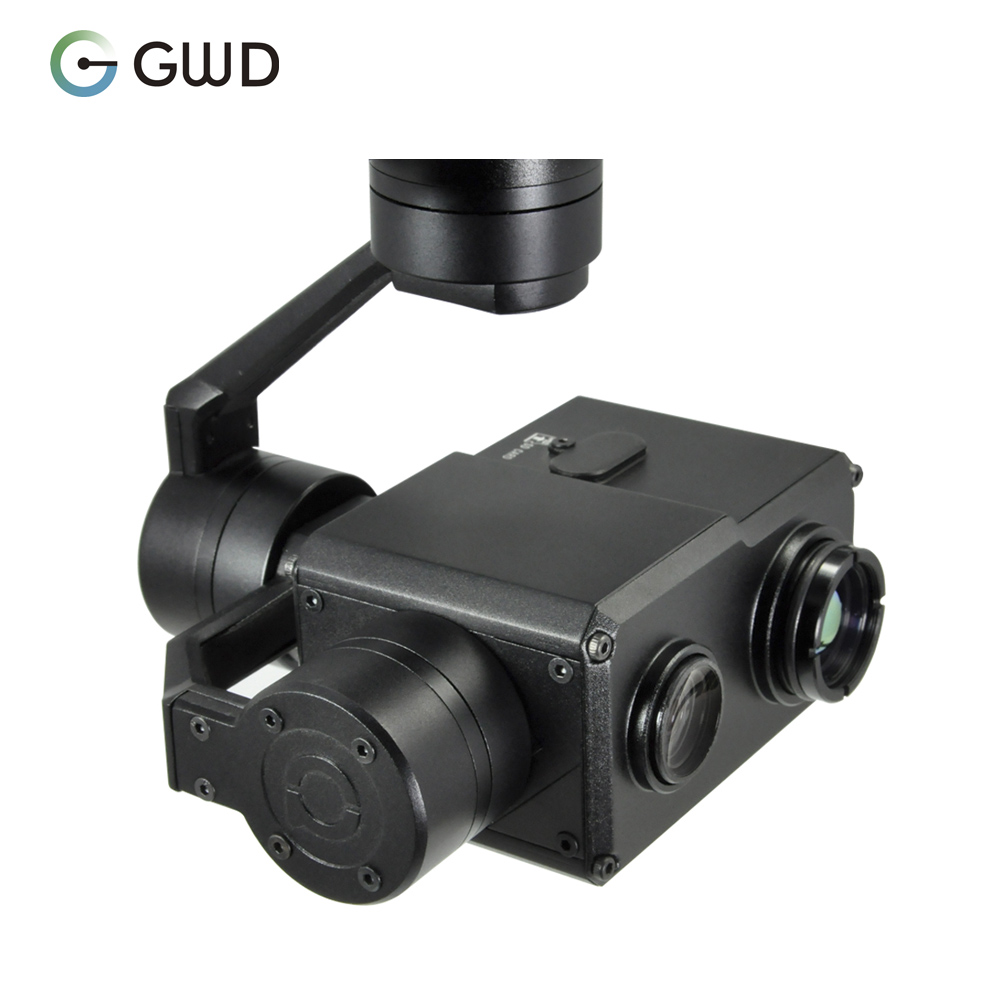

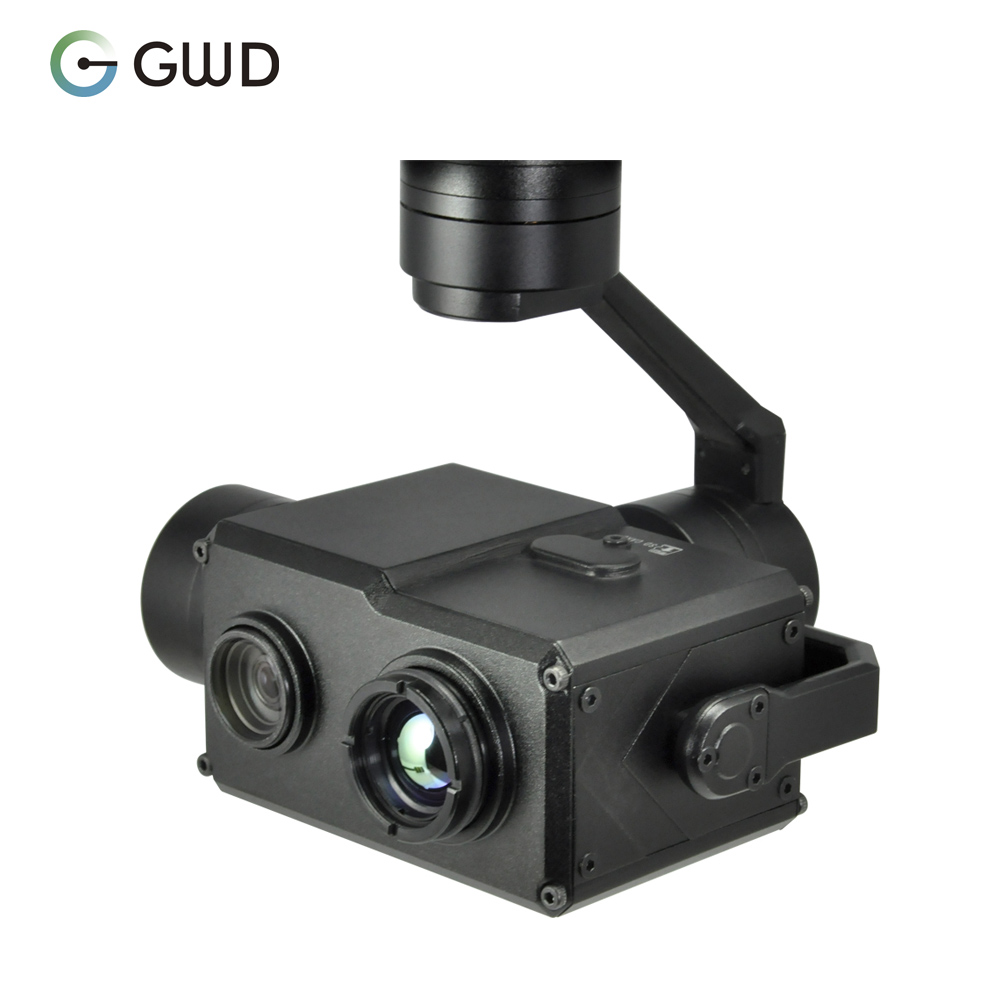

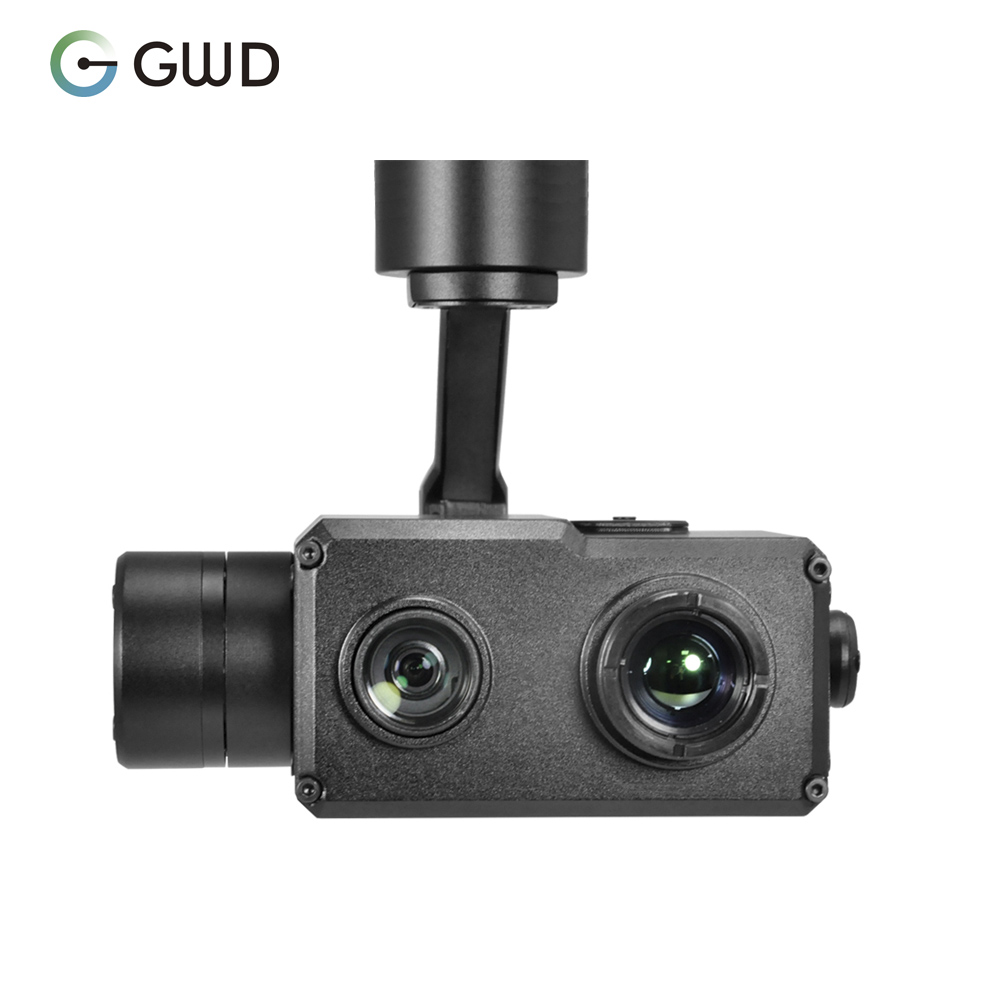

Mini Z10TIR is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can meet many powerful functions, such as: photos or videos with 10 times optical zoom, object tracking, thermal imager and so on. The speed of Mini Z10TIR gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. The one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.
|
HARDWARE PARAMETER
|
|
|
Working voltage
|
12V
|
|
Input voltage
|
3S ~ 6S
|
|
Output voltage
|
5V (connect with PWM)
|
|
Dynamic current
|
550mA @ 12V
|
|
Idle current
|
450mA @ 12V
|
|
Working environment temp.
|
-20℃ ~ +60℃
|
|
Output
|
Skyport
|
|
Local-storage
|
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
|
|
Control method
|
DJI Pilot
|
|
GIMBAL SPECIFICATIONS
|
|
|
Pitch/Tilt
|
±90°
|
|
Roll
|
±85°
|
|
Yaw/Pan
|
±360°
|
|
Vibration Angle
|
Pitch/Roll:±0.01°,Yaw:±0.01°
|
|
One-key to center
|
√
|
|
CAMERA SPECIFICATIONS
|
|
|
Imager Sensor
|
SONY sensor 1/3" CMOS
|
|
Picture quality
|
Full HD 1080 (1920*1080)
|
|
Effective pixel
|
4.08MP
|
|
Lens optical zoom
|
10x, F=3.2~33.6mm
|
|
Digital zoom
|
None
|
|
Min object distance
|
10mm(wide end) to 800mm(tele end)
|
|
Horizontal viewing angle
|
59.2°(wide end) ~ 6.7°(tele end)
|
|
Sync system
|
Internal
|
|
S/N ratio
|
more than 52dB
|
|
Min illumination
|
0.5 lx (1/30s, F1.8, 50%)
|
|
Gain
|
Auto / Manual
|
|
White balance
|
ATW1 (Narrow), ATW2 (Wide), single touch, manual (B, R)
|
|
Shutter speed
|
1/1s to 1/10,000s
|
|
Backlight compensation
|
Yes
|
|
Aperture control
|
16 steps
|
|
OSD
|
Yes
|
|
Sync system
|
Progressive scanning
|
|
Local video
|
1080P 30fps local TF card
|
|
HD output
|
1080P 50/60fps HDMI1.4
|
|
S/N ratio
|
38dB
|
|
Min illumination
|
Color 0.05lux@F1.6
|
|
Backlight compensation
|
Backlight compensation/strong light inhibition
|
|
Gain
|
Auto
|
|
White balance
|
Auto/Manual
|
|
Control system
|
UART/IR/PWM
|
|
Communication protocol
|
PELCO-D, Hitachi protocol or VISCA
|
|
Focus
|
Auto/Manual/One-time automatic focus
|
|
Focus speed
|
2s
|
|
Lens initialization
|
Built-in
|
|
User presetting bit
|
20 sets
|
|
Image rotation
|
180°, Horizontal/Vertical mirror image
|
|
Facial recognition
|
√
|
|
Camera Object Tracking
|
|
|
Update rate of deviation pixel
|
50Hz
|
|
Output delay of deviation pixel
|
<10ms
|
|
Minimum object contrast
|
5%
|
|
SNR
|
4
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
|
The mean square root values of pulse noise in the object position
|
< 0.5 pixel
|
|
Thermal imager spec
|
|
|
Lens size
|
19mm
|
|
Horizontal FOV
|
32°
|
|
Vertical FOV
|
24°
|
|
Diagonal FOV
|
39.4°
|
|
Detective Distance (Man: 1.8x0.5m)
|
559 meters
|
|
Recognize Distance (Man: 1.8x0.5m)
|
140 meters
|
|
Verified Distance (Man: 1.8x0.5m)
|
70 meters
|
|
Detective Distance (Car: 4.2x1.8m)
|
1714 meters
|
|
Recognize Distance (Car: 4.2x1.8m)
|
428 meters
|
|
Verified Distance (Car: 4.2x1.8m)
|
214 meters
|
|
Working mode
|
Uncooled long wave (8μm~14μm) thermal imager
|
|
Detector pixel
|
640*480
|
|
Pixel size
|
17μm
|
|
Focusing method
|
Athermal prime lens
|
|
Emissivity correction
|
0.01~1
|
|
NETD
|
≤50mK (@25℃)
|
|
MRTD
|
≤650mK (@characteristic frequency)
|
|
Image enhancement
|
Auto adjust image brightness and contrast ratio
|
|
Color palette
|
White, iron red, pseudo color
|
|
Auto Non-uniform correction
|
Yes (no shutter)
|
|
Digital zoom
|
1x~4x
|
|
Sync correct time
|
Yes
|
|
Thermometry type
|
Not support
|
|
Thermal Object Tracking
|
|
|
Update rate of deviation pixel
|
25Hz
|
|
Output delay of deviation pixel
|
<3ms
|
|
Minimum object size
|
32*32 pixel
|
|
Maximum object size
|
128*128 pixel
|
|
Tracking speed
|
±48 ~ ±192 pixel/frame
|
|
Object memory time
|
100 frames (4s)
|
